3319-10 Ribbon Cable, High Flex, 10WAY, Per M 3M

3MUGS :3319-10 Code de commande:1207426

Prix:
Prix ​​promotionnel€16,78

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (265 unité)

Documents et téléchargements

description

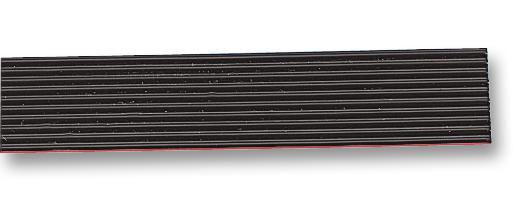

3M - 3319-10 - Ribbon Cable, Round Conductor Flat High Flex, Unscreened, 10 Core, 28 AWG, 0.093 mm²

  • Cable Shielding: Unscreened
  • No. of Cores: 10Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.093mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Black
  • Cable Width: 12.7mm
  • No. of Max Strands x Strand Size: 19 x 40AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Silver Plated Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 3319 Series
  • Approval Bodies: UL
  • Cable Type: Flat (Ribbon)
  • Cable UL Style Number: UL2651
  • Capacitance: 43.6pF/m
  • Colour: Black
  • Conductor Make-up: 19/40AWG
  • Conductor Plating: Silver
  • Flammability Rating: VW-1
  • Impedance: 107ohm
  • Inductance: 0.49µH/m
  • Insulation Resistance: 10000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -20°C
