3308 Cable, Shielded, 28AWG, 8CORE, Per M Alpha Wire

ALPHA WIREUGS :3308 Code de commande:1619702

Prix:
Prix ​​promotionnel€9,84

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13 unité)

Documents et téléchargements

description

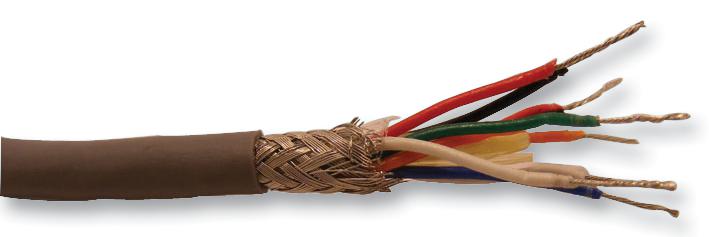

ALPHA WIRE - 3308 - Multicore Cable, Control, Per M, Screened, 8 Core, 28 AWG, 0.09 mm²

  • Cable Shielding: Screened
  • No. of Cores: 8Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.09mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: 7 x 0.127mm
  • Conductor Material: Copper
  • Jacket Material: PVC
  • External Diameter: 4.4mm
  • Voltage Rating: 600V
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Type: Braided Shield
  • Conductor Make-up: 7 / 36
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: 55°C
  • Outer Diameter: 4.4mm
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Secondary Insulation Thickness: 0.38mm
  • Test Voltage: 600V
  • Wire Size: 28AWG
