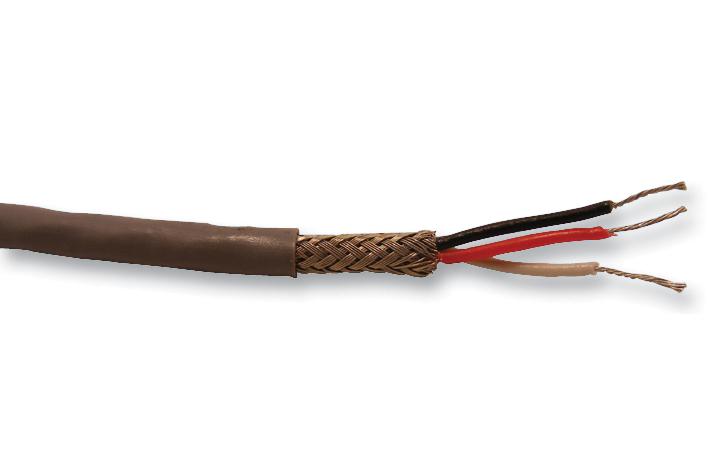

ALPHA WIRE - 3303 - Multicore Cable, Screened, 3 Core, 28 AWG, 0.09 mm²
- Cable Shielding: Screened
- No. of Cores: 3Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.09mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 0.127mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 3.3mm
- Voltage Rating: 600V
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Braided Shield
- Conductor Make-up: 7 / 36
- Operating Temperature Max: 105°C
- Operating Temperature Min: 55°C
- Outer Diameter: 3.3mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 0.3mm
- Test Voltage: 600V
- Wire Size: 28AWG
