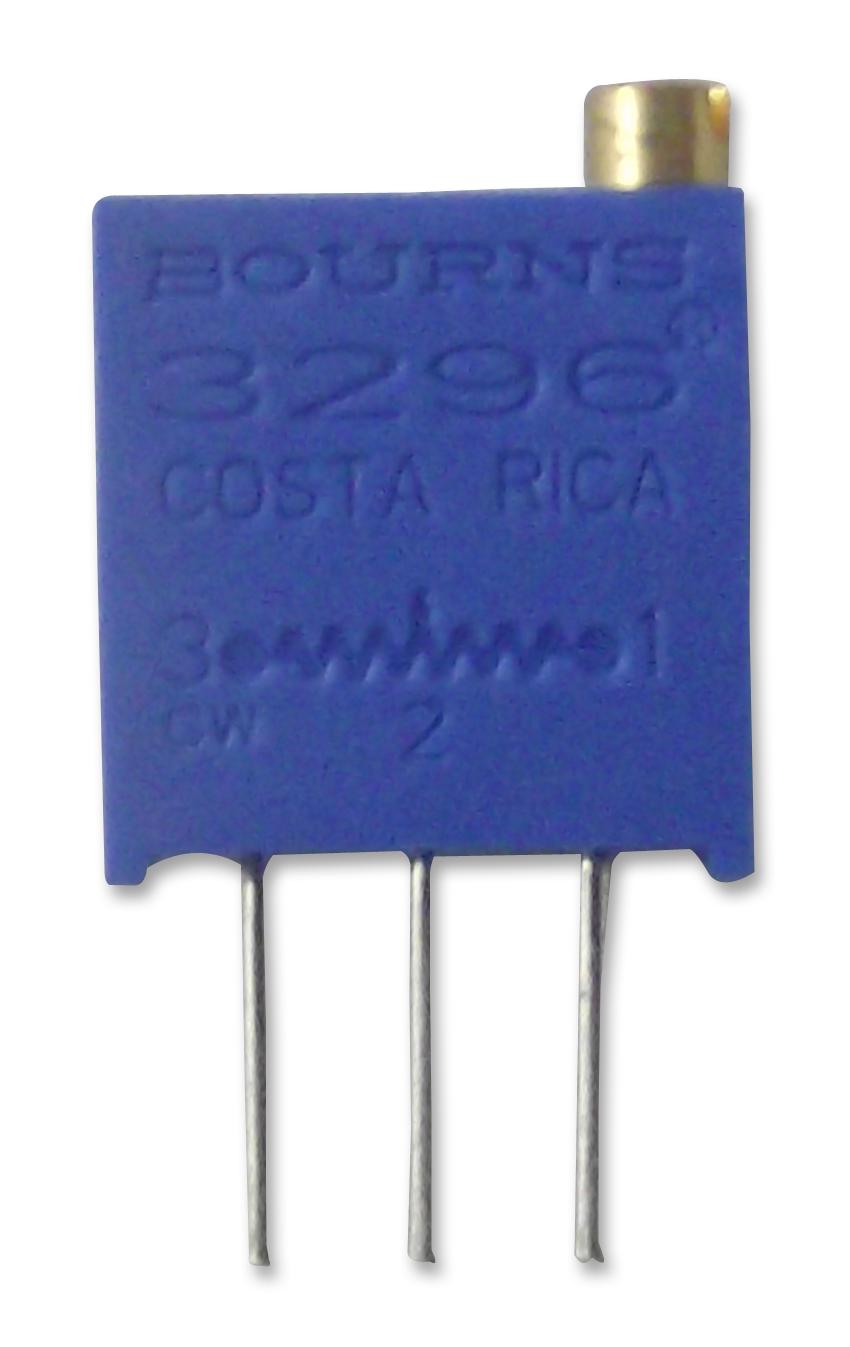

BOURNS - 3296W-1-203LF - Trimpot, Multi Turn, Cermet, Top Adjust, 20 kohm, Through Hole, 25 Turns
- Track Resistance: 20kohm
- No. of Turns: 25Turns
- Potentiometer Mounting: Through Hole
- Product Range: Trimpot 3296 Series
- Power Rating: 500mW
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (15-Jan-2019)
- Adjustment Type: Screwdriver Slot
- Contact Resistance Variation +: 1%
- Lead Diameter: 0.5mm
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Resistance: 20kohm
- Resistor Element Material: Cermet
- Voltage Rating: 300V
