description

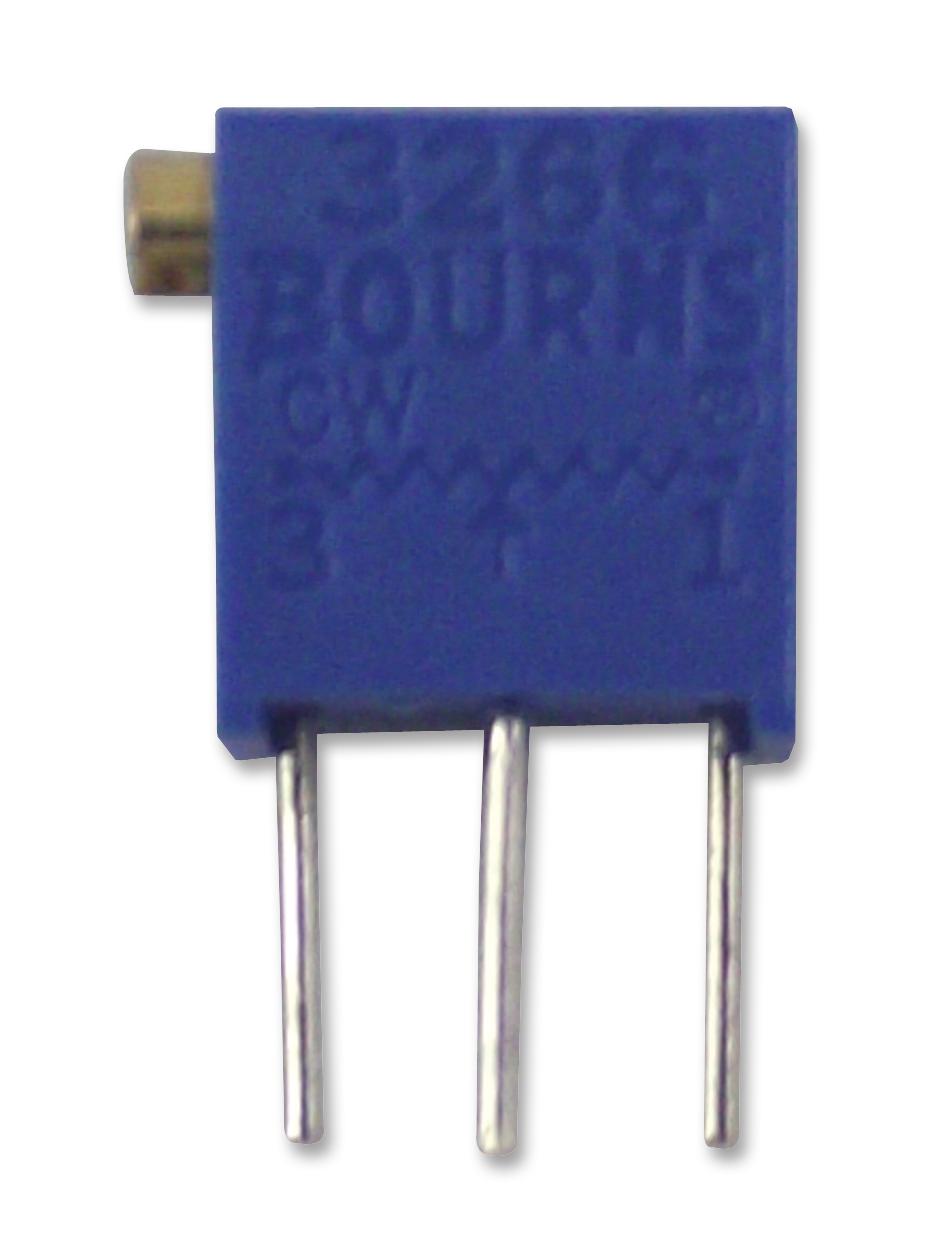

BOURNS - 3266X-1-203LF - Trimpot, Multi Turn, Cermet, Side Adjust, 20 kohm, Through Hole, 12 Turns
- Track Resistance: 20kohm
- No. of Turns: 12Turns
- Potentiometer Mounting: Through Hole
- Product Range: Trimpot 3266 Series
- Power Rating: 250mW
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Adjustment Type: Screwdriver Slot
- Contact Resistance Variation +: 3%
- End Resistance: 5ohm
- External Length / Height: 6.9mm
- Full Power Rating Temperature: 70°C
- Lead Diameter: 0.5mm
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Proof Voltage: 600V
- Resistance: 20kohm
- Resistor Element Material: Cermet
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 10%
- Tolerance -: 10%
- Track Taper: Linear
- Voltage Rating: 300V
- Voltage Rating V DC: 300V
