3251 SL001 WIRE, UL1061, 22AWG, GREY, 305M ALPHA WIRE

ALPHA WIREUGS :3251 SL001 Code de commande:1199025

Prix:
Prix ​​promotionnel€146,30

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 3 produits disponibles

Documents et téléchargements

description

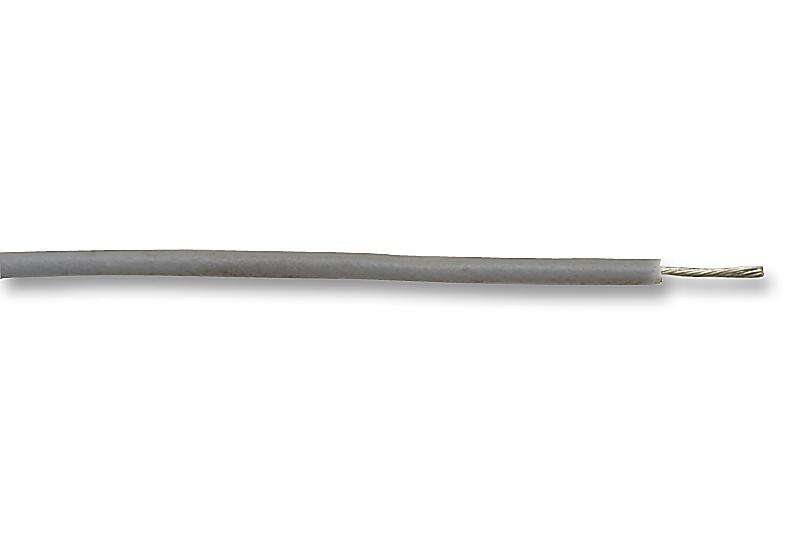

ALPHA WIRE - 3251 SL001 - Wire, Stranded, Hook Up, UL1061, PVC, Grey, 22 AWG, 0.357 mm², 1000 ft, 305 m

  • Jacket Material: PVC
  • Jacket Colour: Grey
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.357mm²
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 305m
  • No. of Max Strands x Strand Size: 7 x 0.255mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • External Diameter: 1.22mm
  • Approval Specification: CSA AWM I A/B FT1, UL 1061 VW-1
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1061
  • Conductor Make-up: 7 / 30AWG
  • Current Rating: 8A
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -10°C
  • Outer Diameter: 1.22mm
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Voltage Rating VAC: 300V
  • Wire Size: 22AWG
