3251-21-01/TP3251-31-01/70 Switch, 16A, Aux Contact TRIPUS

TRIPUSUGS :3251-21-01/TP3251-31-01/70 Code de commande:9968482

Prix:
Prix ​​promotionnel€36,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (94 unité)

Documents et téléchargements

description

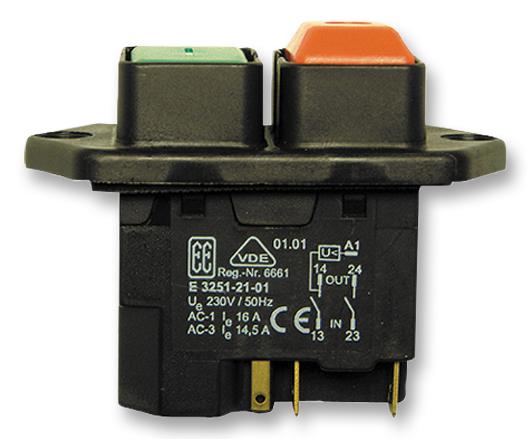

TRIPUS - 3251-21-01/TP3251-31-01/70 - Industrial Pushbutton Switch, DPST, Off-On, 16A, 230V, IP40, Black Housing

  • Switch Operation: Off-On
  • Contact Configuration: DPST
  • Contact Voltage AC Nom: 230V
  • Contact Voltage DC Nom: -
  • Contact Current Max: 16A
  • Switch Terminals: Quick Connect, Solder
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: UL, VDE
  • Body Depth: 38.5mm
  • Contact Current AC Max: 16A
  • Contact Voltage VAC: 230V
  • Current Rating: 16A
  • External Depth: 60mm
  • External Length / Height: 57mm
  • External Width: 35.5mm
  • Fixing Centres: 62mm
  • IP / NEMA Rating: IP40
  • Illumination Colour: Non-illuminated
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -25°C
  • Panel Cutout Size: 45.3 x 21.8 mm
  • Pushbutton Switch Type: Industrial
  • Voltage Rating V DC: 230VAC
