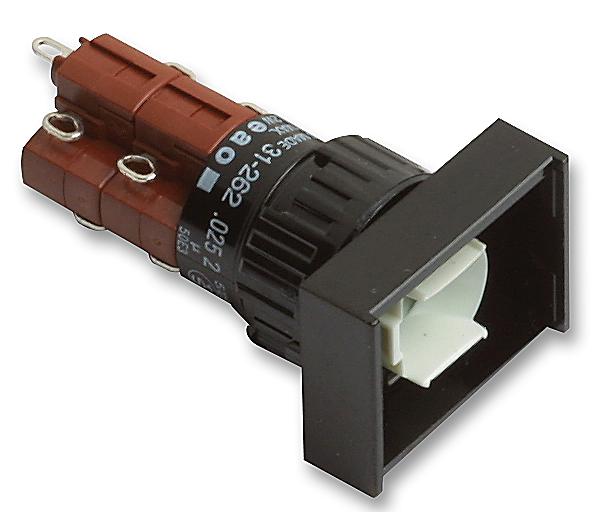

EAO - 31-262.0252 - Industrial Pushbutton Switch, 31, 16 mm, DPST-NO, DPST-NC, Maintained, Rectangular
- Switch Operation: Maintained
- Pushbutton Actuator Style: Rectangular
- Contact Configuration: DPST-NO, DPST-NC
- Product Range: 31 Series
- Switch Terminals: Solder Lug
- IP Rating: IP40
- Contact Current Max: 5A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 250V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Rectangular
- Behind Panel Depth: 36.5mm
- Contact Current @ Contact Voltage AC Max: 5A
- Contact Current AC Max: 5A
- Contact Voltage VAC: 250V
- External Depth: 47mm
- External Length / Height: 18mm
- External Width: 24mm
- IP / NEMA Rating: IP40
- No. of Mechanical Operations: 1000000
- Operating Force Max: 5.5N
- Operating Force Min: 2N
- Operating Temperature Max: 55°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 16mm
- Pushbutton Switch Type: Standard
- Switch Mounting: Panel
- Switching Current AC Max: 5A
- Switching Current AC Min: 10mA
- Travel: 3mm
