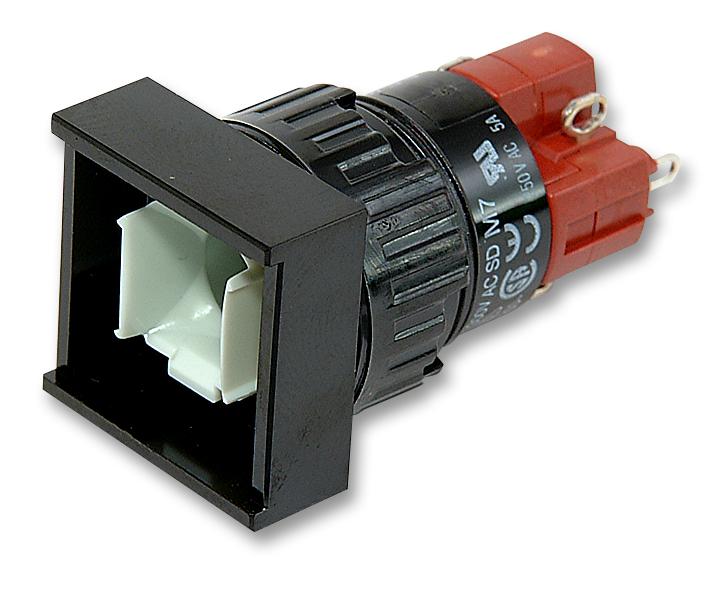

EAO - 31-151.0252 - Pushbutton Switch, 31, 16 mm, SPST-NO, SPST-NC, Momentary, Square
- Product Range: 31 Series
- Contact Configuration: SPST-NO, SPST-NC
- Switch Operation: Momentary
- Contact Current Max: 5A
- Contact Voltage AC Nom: 250V
- Illumination Colour: -
- Contact Voltage DC Nom: 250V
- Switch Terminals: Solder Lug
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Square
- Behind Panel Depth: 29mm
- Contact Current @ Contact Voltage AC Max: 250A
- Contact Current AC Max: 5A
- Contact Current Rating: 5A
- Contact Voltage VAC: 250V
- External Depth: 37mm
- External Length / Height: 18mm
- External Width: 18mm
- IP Rating: IP40
- No. of Mechanical Operations: 1000000
- Operating Force Max: 5.5N
- Operating Force Min: 2N
- Operating Temperature Max: 55°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 16mm
- Pushbutton Actuator Style: Square
- Pushbutton Switch Type: Standard
- Switch Mounting: Panel
- Switching Current AC Max: 5A
- Switching Current AC Min: 10mA
- Travel: 3mm
