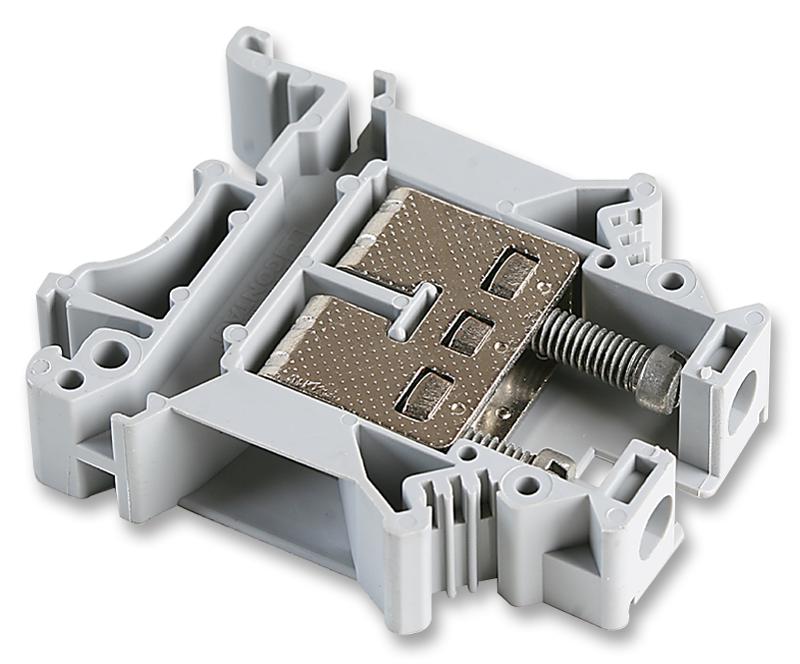

3006043 Terminal Block, DIN Rail, 2Pos Phoenix Contact

PHOENIX CONTACTUGS :3006043 Code de commande:3042960

Prix:
Prix ​​promotionnel€7,53

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (35 unité)

Documents et téléchargements

description

PHOENIX CONTACT - 3006043 - DIN Rail Mount Terminal Block, 2 Ways, 14 AWG, 4 AWG, 25 mm², Screw, 76 A

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 14AWG
  • Wire Size AWG Max: 4AWG
  • Conductor Area CSA: 25mm²
  • Wire Connection Method: Screw
  • Rated Current: 76A
  • Rated Voltage: 800V
  • No. of Levels: 1
  • Product Range: UK
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Grey
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • External Width: 12.2mm
  • Flexible Wire Area Size Max: 25mm²
  • Pitch Spacing: 12.2mm
  • Voltage Rating VAC: 800V
  • Wire Area Size Max: 16mm²
  • Wire Area Size Min: 4mm²
  • Working Voltage: 800V
