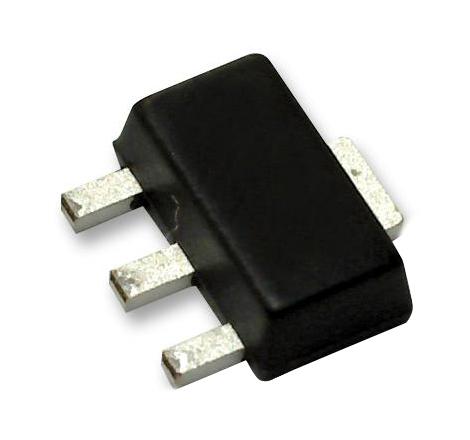

ROHM - 2SC5824T100R - Bipolar (BJT) Single Transistor, NPN, 60 V, 2 A, 500 mW, SOT-89, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 60V
- Transition Frequency ft: 200MHz
- Power Dissipation Pd: 500mW
- DC Collector Current: 2A
- DC Current Gain hFE: 120hFE
- Transistor Case Style: SOT-89
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Current Ic Continuous a Max: 2A
- Gain Bandwidth ft Typ: 200MHz
- Hfe Min: 120
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Power
