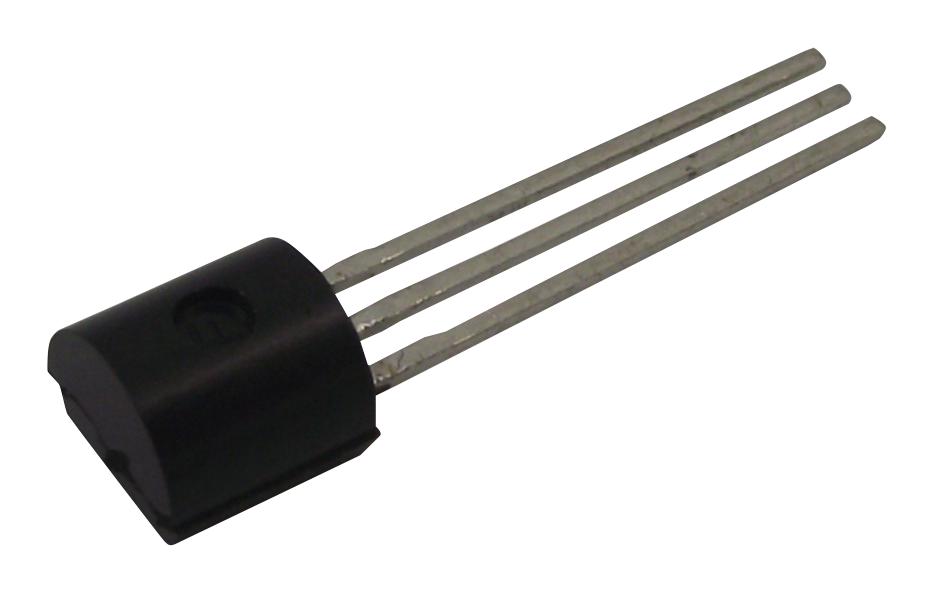

2N5551 Transistor, NPN, 160V, TO-92 ONSEMI

ONSEMIUGS :2N5551 Code de commande:9846751

Prix:
Prix ​​promotionnel€0,31

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (19004 unité)

Documents et téléchargements

description

ONSEMI - 2N5551 - Bipolar (BJT) Single Transistor, NPN, 160 V, 600 mA, 625 mW, TO-92, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 160V
  • Transition Frequency ft: 150MHz
  • Power Dissipation Pd: 625mW
  • DC Collector Current: 600mA
  • DC Current Gain hFE: 80hFE
  • Transistor Case Style: TO-92
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Collector Emitter Saturation Voltage Vce(on): 150mV
  • Continuous Collector Current Ic Max: 600mA
  • Current Ic Continuous a Max: 600mA
  • Current Ic hFE: 10mA
  • Device Marking: 2N5551
  • Gain Bandwidth ft Min: 100MHz
  • Gain Bandwidth ft Typ: 300MHz
  • Hfe Min: 80
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pin Configuration: b
  • Power Dissipation Ptot Max: 350mW
  • Voltage Vcbo: 180V
