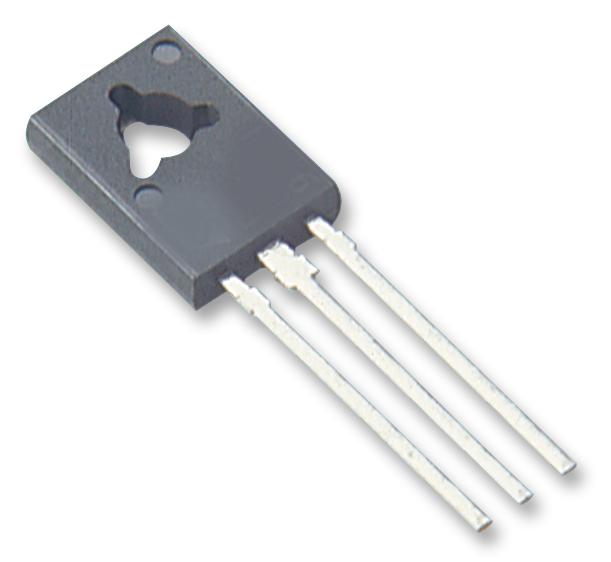

2N5191G Transistor, NPN, TO-225 ONSEMI

ONSEMIUGS :2N5191G Code de commande:1459021

Prix:
Prix ​​promotionnel€1,38

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3384 unité)

Documents et téléchargements

description

ONSEMI - 2N5191G - Bipolar (BJT) Single Transistor, NPN, 60 V, 4 A, 40 W, TO-225AA, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 60V
  • Transition Frequency ft: 2MHz
  • Power Dissipation Pd: 40W
  • DC Collector Current: 4A
  • DC Current Gain hFE: 2hFE
  • Transistor Case Style: TO-225AA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 600mV
  • Complementary Device: 2N5194 / 2N5195
  • Continuous Collector Current Ic Max: 4A
  • Current Ic Continuous a Max: 4A
  • Current Ic hFE: 4A
  • Gain Bandwidth ft Min: 2MHz
  • Gain Bandwidth ft Typ: 2MHz
  • Hfe Min: 10
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Ptot Max: 40W
  • Termination Type: Through Hole
  • Voltage Vcbo: 60V
