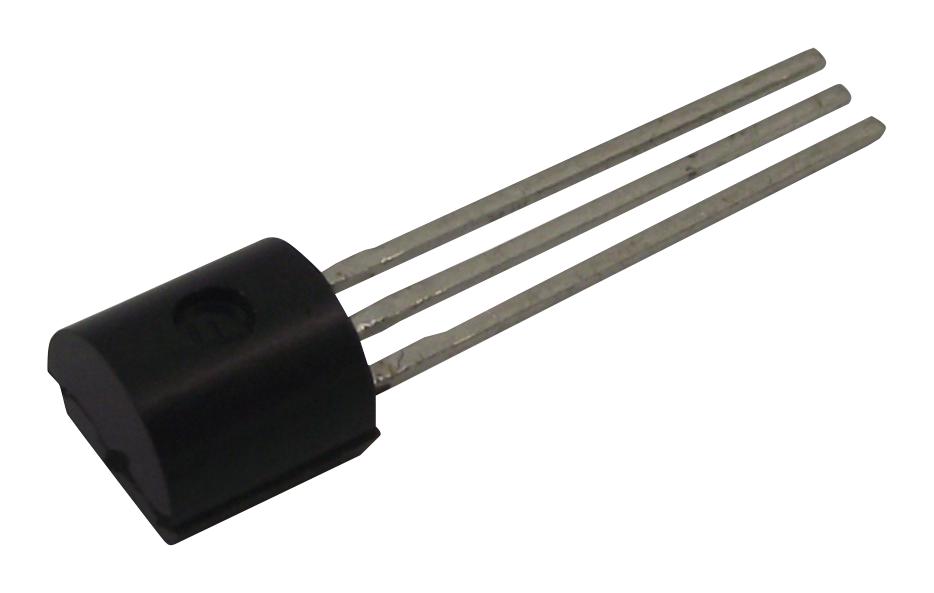

MULTICOMP PRO - 2N3906 - Bipolar (BJT) Single Transistor, High Speed Switching, PNP, 40 V, 200 mA, 625 mW, TO-92
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: -40V
- Transition Frequency ft: 250MHz
- Power Dissipation Pd: 625mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 100hFE
- Transistor Case Style: TO-92
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 250mV
- Continuous Collector Current Ic Max: 200mA
- Current Ic @ Vce Sat: 10mA
- Current Ic Continuous a Max: 200mA
- Current Ic Fall Time Measurement: 10mA
- Current Ic hFE: 1mA
- Fall Time @ Ic: 75ns
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 250MHz
- Gain Bandwidth ft Typ: 250MHz
- Hfe Min: 100
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pin Configuration: b
- Power Dissipation Ptot Max: 250mW
- Termination Type: Through Hole
- Voltage Vcbo: 40V
