WEIDMULLER - 1862530000 - Terminal Block, Header, 3.81 mm, 8 Ways, 10 A, 300 V, Through Hole Right Angle

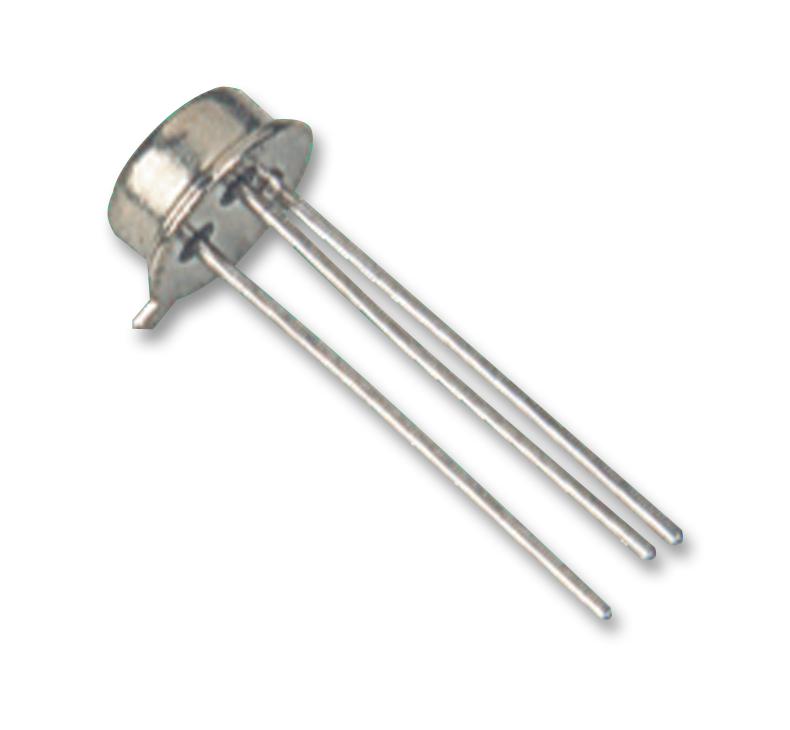

- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 350V
- Transition Frequency ft: 15MHz
- Power Dissipation Pd: 1W
- DC Collector Current: 1A
- DC Current Gain hFE: 160hFE
- Transistor Case Style: TO-39
- No. of Pins: 3Pins
- Operating Temperature Max: 200°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Av Current Ic: 1A
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Continuous Collector Current Ic Max: 1A
- Current Ic @ Vce Sat: 50mA
- Current Ic Continuous a Max: 1A
- Current Ic hFE: 2mA
- Device Marking: 2N3439
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 15MHz
- Gain Bandwidth ft Typ: 15MHz
- Hfe Min: 30
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Power Dissipation Ptot Max: 10W
- Termination Type: Through Hole
- Voltage Vcbo: 450V
