description

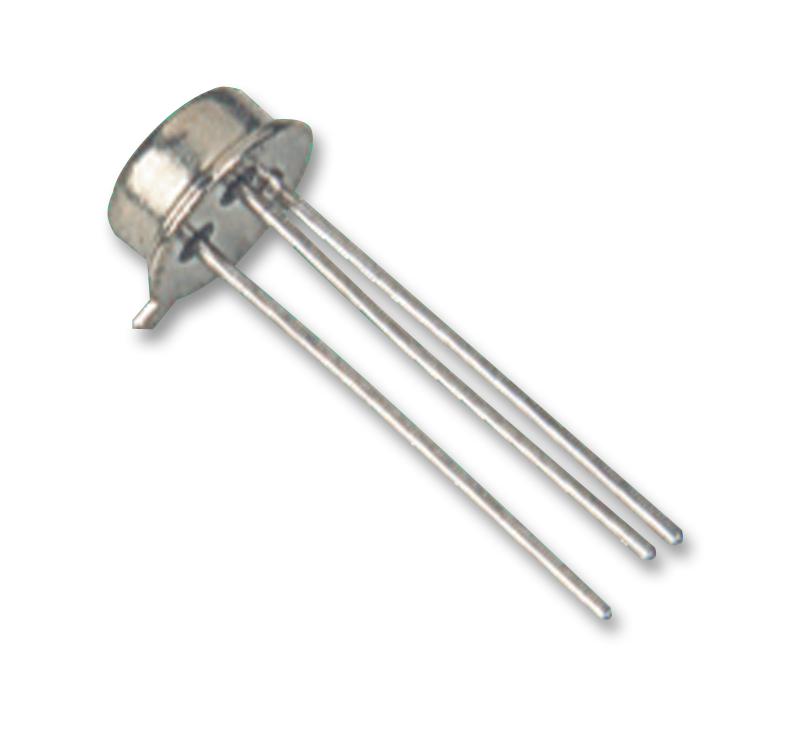

MULTICOMP PRO - 2N2905 - Bipolar (BJT) Single Transistor, High Speed Switching, PNP, 40 V, 600 mA, 3 W, TO-39, Through Hole
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: -40V
- Transition Frequency ft: 200MHz
- Power Dissipation Pd: 3W
- DC Collector Current: 600mA
- DC Current Gain hFE: 100hFE
- Transistor Case Style: TO-39
- No. of Pins: 3Pins
- Operating Temperature Max: 200°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 400mV
- Continuous Collector Current Ic Max: 600mA
- Current Ic @ Vce Sat: 150mA
- Current Ic Continuous a Max: 600mA
- Current Ic Fall Time Measurement: 150mA
- Current Ic hFE: 150mA
- Fall Time @ Ic: 30ns
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 200MHz
- Gain Bandwidth ft Typ: 200MHz
- Hfe Min: 100
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Power Dissipation Ptot Max: 600mW
- Voltage Vcbo: 60V
