2961312 Relay, SPDT, 250VAC, 16A Phoenix Contact

PHOENIX CONTACTUGS :2961312 Code de commande:2315538

Prix:
Prix ​​promotionnel€6,52

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (264 unité)

Documents et téléchargements

description

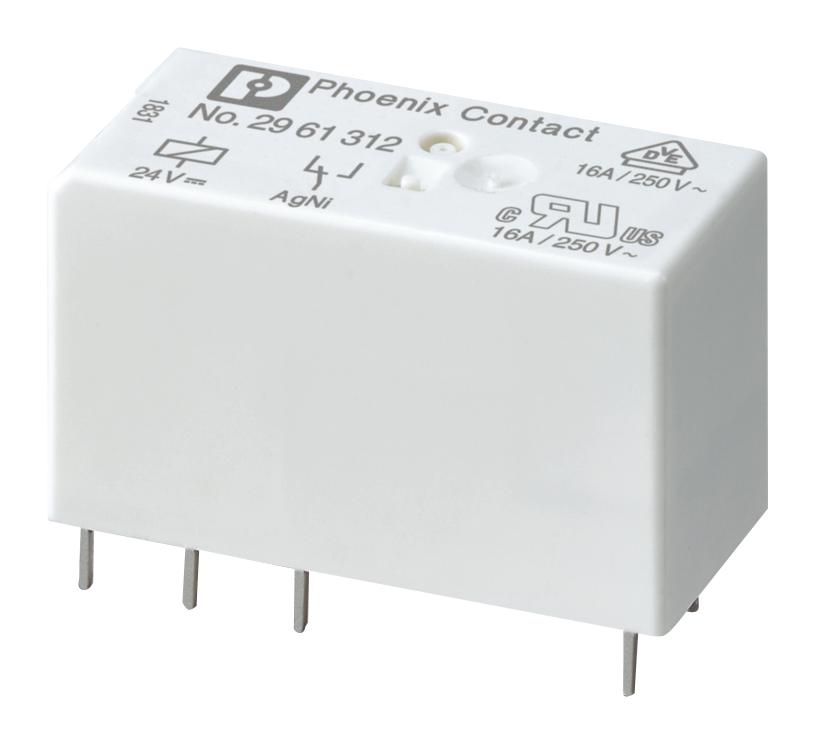

PHOENIX CONTACT - 2961312 - General Purpose Relay, REL-MR Series, Power, Non Latching, SPDT, 24 VDC, 16 A

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 16A
  • Product Range: REL-MR Series
  • Relay Mounting: Socket
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: 250VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 1.44kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Coil Current: 17mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 250V
  • External Depth: 15.7mm
  • External Height: 29mm
  • External Width: 12.7mm
  • Nom Operating Power: 384W
  • Relay Type: Power
