2961105 Relay, SPDT, 250VAC, 6a Phoenix Contact

PHOENIX CONTACTUGS :2961105 Code de commande:2315534

Prix:
Prix ​​promotionnel€11,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (8382 unité)

Documents et téléchargements

description

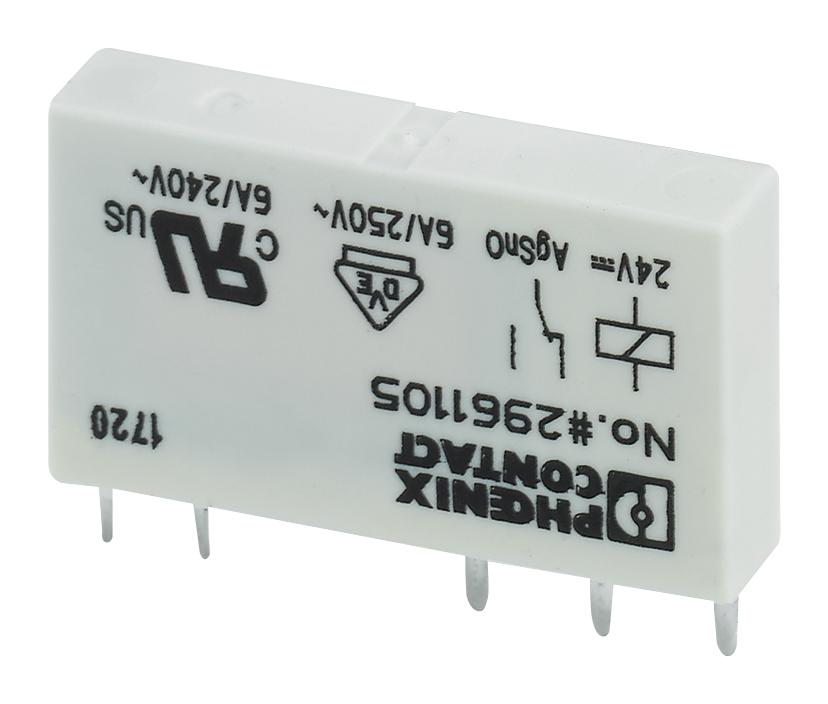

PHOENIX CONTACT - 2961105 - General Purpose Relay, REL-MR Series, Power, Non Latching, SPDT, 24 VDC, 6 A

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 6A
  • Product Range: REL-MR Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 250VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 3.39kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Coil Current: 7mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 6A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 250V
  • External Depth: 15mm
  • External Height: 28mm
  • External Width: 5mm
  • Nom Operating Power: 140W
  • Relay Type: Power
