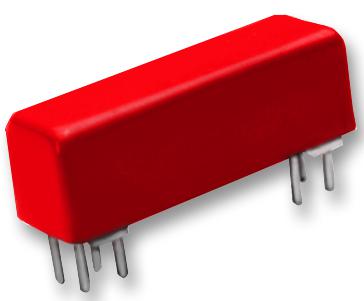

COTO TECHNOLOGY - 2911-05-321 - Reed Relay, SPDT, 5 VDC, 2900, Through Hole, 230 ohm, 250 mA
- Contact Configuration: SPDT
- Coil Voltage: 5VDC
- Product Range: 2900 Series
- Relay Mounting: Through Hole
- Coil Resistance: 230ohm
- Switching Current Max: 250mA
- Switching Voltage Max: 150V
- SVHC: No SVHC (15-Jan-2019)
- Case Material: Epoxy coated Steel
- Coil Voltage VDC Nom: 5V
- Contact Resistance: 150mohm
- Contact Voltage DC Max: 150V
- Current Max: 1A
- External Depth: 20.82mm
- External Height: 7.11mm
- External Length / Height: 7.11mm
- External Width: 6.35mm
- Insulation Resistance: 100Gohm
- Must Actuate Voltage: 3.8VDC
- Must Release Voltage: 0.4VDC
- No. of Electrical Operations: 100000000
- No. of Mechanical Operations: 100000000
- No. of Pins: 7Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Operating Time: 1ms
- Release Time: 2ms
- Row Pitch: 2.54mm
- Switch Current Max: 250mA
- Switch Power Max: 3W
- Type: Co-axial Shield
