282103-1 Tab Housing, 1WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :282103-1 Code de commande:150642

Prix:
Prix ​​promotionnel€0,86

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9149 unité)

Documents et téléchargements

description

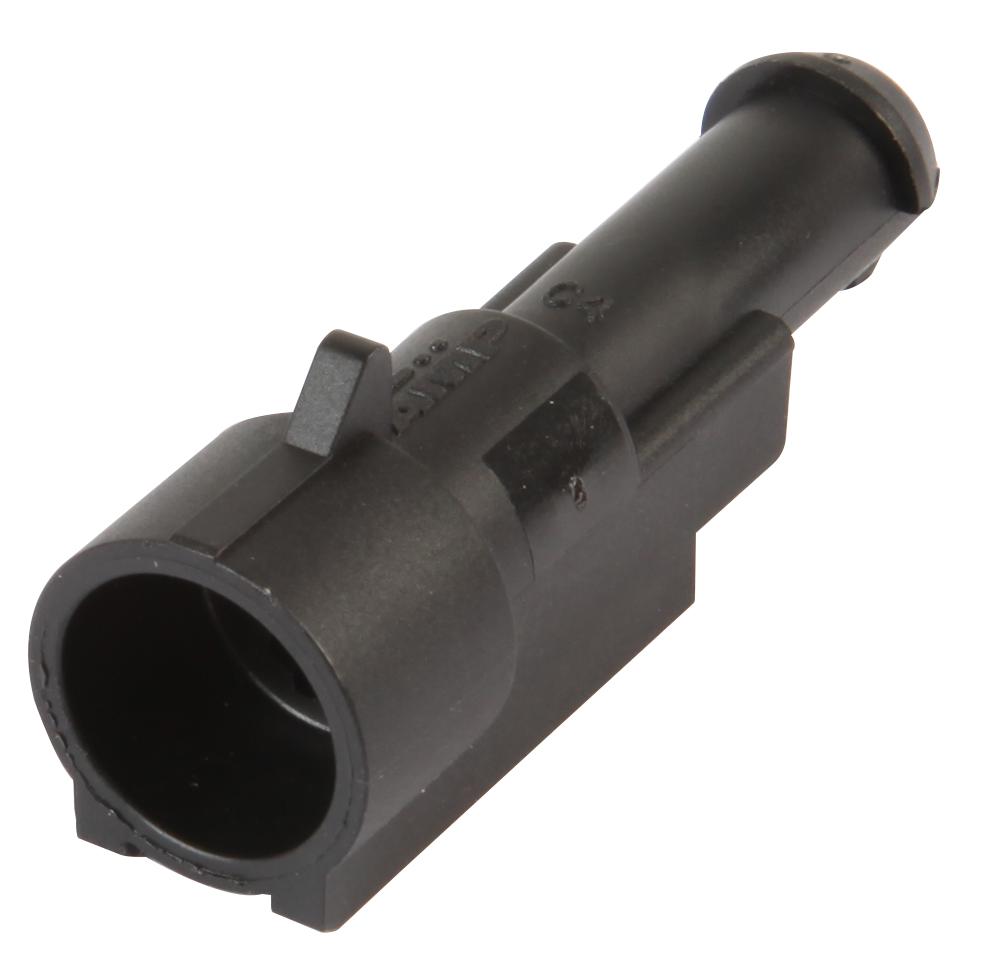

AMP - TE CONNECTIVITY - 282103-1 - Connector Housing, SUPERSEAL 1.5, Plug, 1 Ways, Superseal 1.5 Series Connectors

  • Product Range: SUPERSEAL 1.5 Series
  • Gender: Plug
  • No. of Positions: 1Ways
  • Pitch Spacing: -
  • For Use With: Superseal 1.5 Series Connectors
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 1.7mm
  • Cable Diameter Min: 1.4mm
  • Current Rating: 14A
  • External Depth: 16.3mm
  • External Length / Height: 42mm
  • External Width: 13.8mm
  • Insulation Resistance: 200Mohm
  • Material: Silicon Rubber
  • Moulding Material: Polyamide 6.6 GF
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Withstand Voltage: 1500V
