282089-1 Socket Housing, 5WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :282089-1 Code de commande:150447

Prix:
Prix ​​promotionnel€2,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3339 unité)

Documents et téléchargements

description

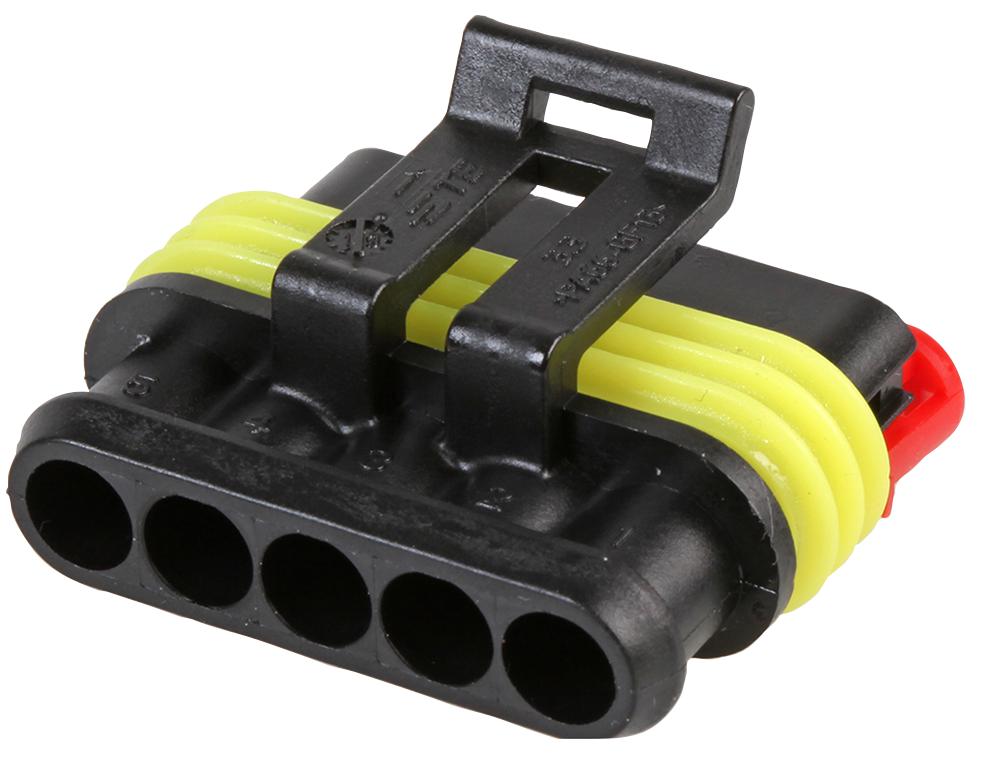

AMP - TE CONNECTIVITY - 282089-1 - Automotive Connector Housing, SUPERSEAL 1.5, Plug, 5 Ways, Superseal Socket Contacts

  • Product Range: SUPERSEAL 1.5 Series
  • Gender: Plug
  • No. of Positions: 5Ways
  • Pitch Spacing: 6mm
  • For Use With: Superseal Socket Contacts
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 3.3mm
  • Cable Diameter Min: 2.6mm
  • Current Rating: 14A
  • External Depth: 19mm
  • External Length / Height: 28mm
  • External Width: 33.3mm
  • Insulation Resistance: 200Mohm
  • Material: Silicon Rubber
  • Moulding Material: Polyamide 6.6 GF
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Withstand Voltage: 1500V
