282088-1 Socket Housing, 4WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :282088-1 Code de commande:150435

Prix:
Prix ​​promotionnel€2,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13932 unité)

Documents et téléchargements

description

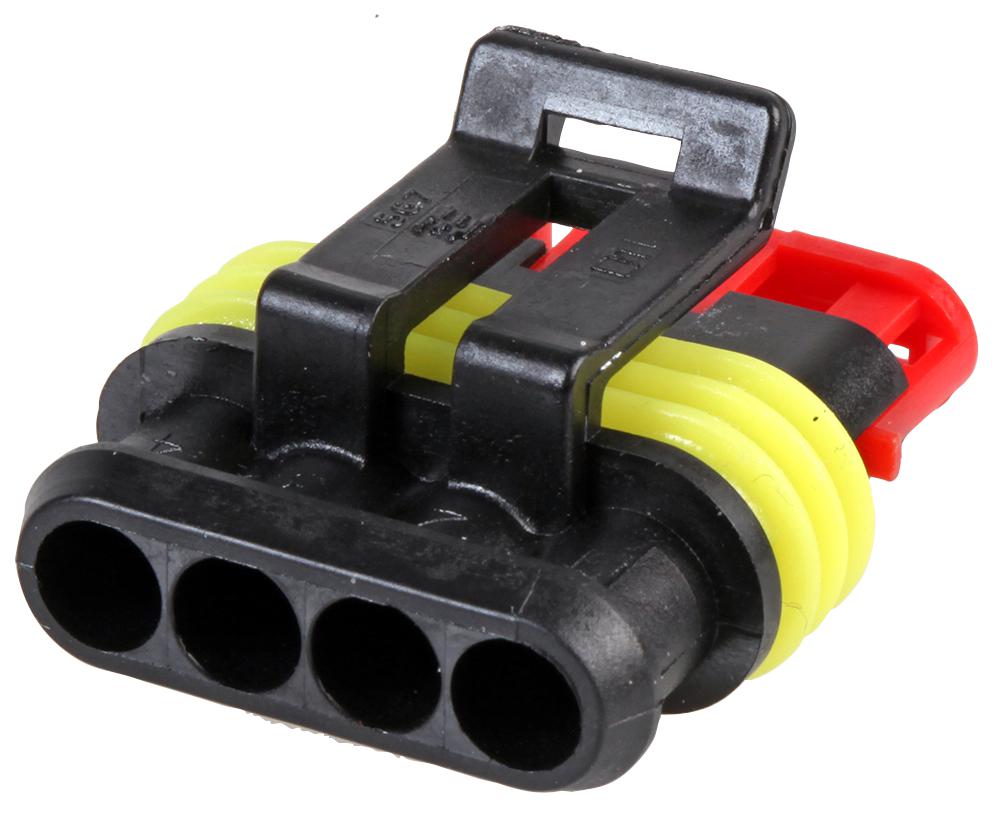

AMP - TE CONNECTIVITY - 282088-1 - Automotive Connector Housing, SUPERSEAL 1.5, Plug, 4 Ways, Superseal Socket Contacts

  • Product Range: SUPERSEAL 1.5 Series
  • Gender: Plug
  • No. of Positions: 4Ways
  • Pitch Spacing: 6mm
  • For Use With: Superseal Socket Contacts
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 3.3mm
  • Cable Diameter Min: 2.6mm
  • Current Rating: 14A
  • External Depth: 19mm
  • External Length / Height: 28mm
  • External Width: 27.3mm
  • Insulation Resistance: 200Mohm
  • Material: Silicon Rubber
  • Moulding Material: Polyamide 6.6 GF
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Withstand Voltage: 1500V
