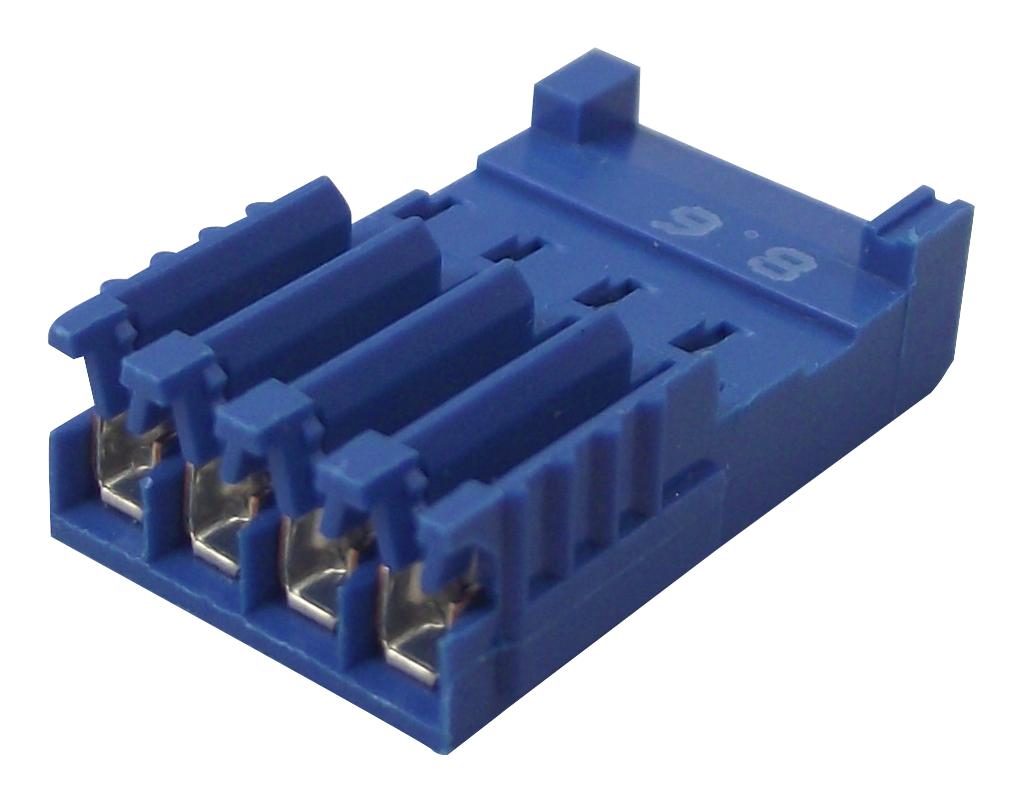

AMP - TE CONNECTIVITY - 281786-4 - IDC Connector, IDC Receptacle, Female, 4 Contacts, Cable Mount
- Pitch Spacing: 2.54mm
- No. of Contacts: 4Contacts
- Gender: Receptacle
- Product Range: AMPMODU HE14 Series
- Contact Termination Type: IDC / IDT
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Colour: Blue
- Contact Resistance: 30mohm
- Current Rating: 3A
- External Length / Height: 17.8mm
- External Width: 5.1mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Material: Glass Filled Polyester
- No. of Mating Cycles: 30
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Working Voltage: 500V
