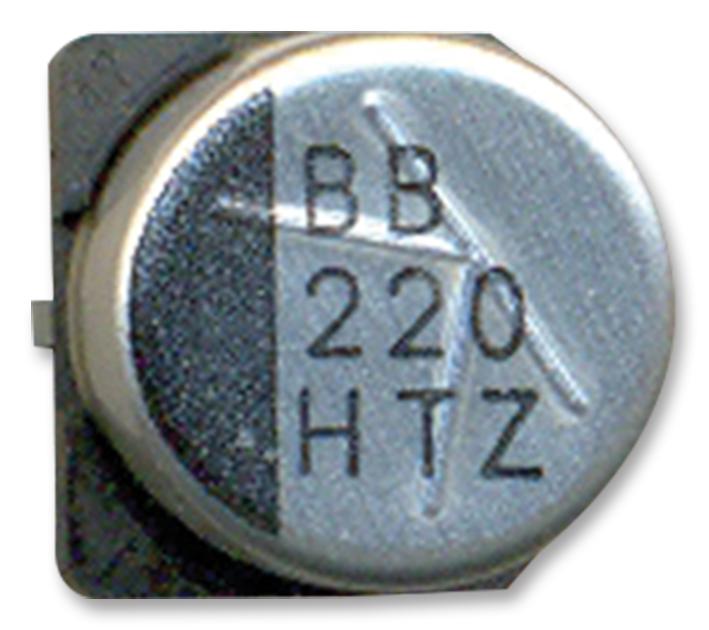

RUBYCON - 25TZV220M8X10.5 - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 220 µF, 25 V, 2000 hours @ 105°C, Polar
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 220µF
- Voltage Rating: 25V
- ESR: -
- Product Range: TZV Series
- Lifetime @ Temperature: 2000 hours @ 105°C
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Ripple Current AC: 600mA
- Diameter: 8mm
- Height: 10.5mm
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: Radial Can - SMD
- External Length / Height: 10.5mm
- Frequency Tolerance: 120Hz
- Impedance: 0.16ohm
- Impedance Frequency: 100kHz
- Impedance Temperature: 20°C
- Operating Temperature Range: -55°C to +105°C
- Operating life Time: 2000h
- Ripple Current Frequency: 100kHz
- Ripple Current Temperature: 105°C
- Tolerance +: 20%
- Tolerance -: 20%
- Tolerance Temperature: 20°C
- Voltage Rating V DC: 25V
- Voltage Rating VAC: 25V
