2404C SL005 Cable, Shielded, 22AWG, 4CORE, 30.5m Alpha Wire

ALPHA WIREUGS :2404C SL005 Code de commande:1619559

Prix:
Prix ​​promotionnel€63,95

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (14 unité)

Documents et téléchargements

description

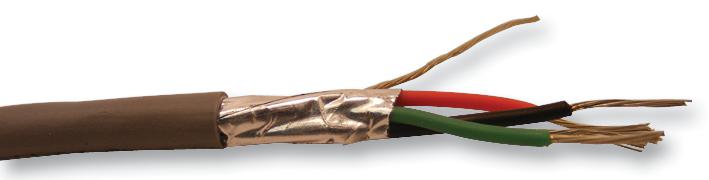

ALPHA WIRE - 2404C SL005 - Multicore Cable, Control, Screened, 4 Core, 22 AWG, 0.357 mm², 100 ft, 30.5 m

  • Cable Shielding: Screened
  • No. of Cores: 4Core
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.357mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: 7 x 30AWG
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • External Diameter: 5.1mm
  • Voltage Rating: 300V
  • Product Range: -
  • SVHC: 1,6,7,8,9,14,15,16,17,17,18,18-Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene ("Dechlorane Plus"TM) (15-Jan-2019)
  • Cable Type: Foil Shield
  • Conductor Make-up: 7 / 30
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 5.1mm
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Secondary Insulation Thickness: 0.5mm
  • Test Voltage: 300V
  • Wire Size: 22AWG
