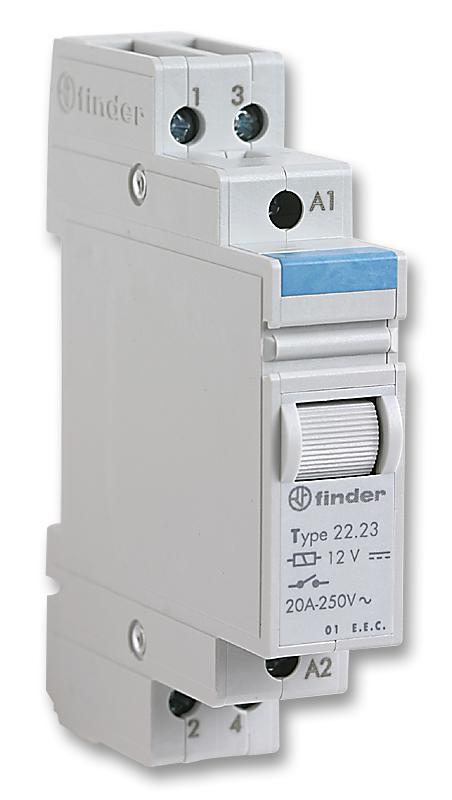

22.23.9.012.4000 Relay, SPST-1NO/1NC, 250VAC, 20A Finder

FINDERUGS :22.23.9.012.4000 Code de commande:1169299

Prix:
Prix ​​promotionnel€43,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (382 unité)

Documents et téléchargements

description

FINDER - 22.23.9.012.4000 - Power Relay, Non Latching, SPST-NO, SPST-NC, 12 VDC, 20 A, 22 Series, DIN Rail, DC

  • Contact Configuration: SPST-NO, SPST-NC
  • Coil Voltage: 12VDC
  • Contact Current: 20A
  • Product Range: 22 Series
  • Relay Mounting: DIN Rail
  • Coil Type: DC
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Screw
  • Contact Voltage VDC: -
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 115ohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: GOST
  • Approval Category: IP20
  • Approvals & Standards: CE
  • Coil Current: 104.3mA
  • Coil Operating Lower Percent Limit: 85%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 30A
  • Contact Current Max: 20A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Current Rating: 20A
  • Dielectric Strength VDC: 3.5kV
  • External Depth: 84mm
  • External Height: 58.4mm
  • External Length / Height: 58.4mm
  • External Width: 17.4mm
  • Nom Operating Power: 1.25W
  • Operating Temperature Max: 40°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
  • Switched Current Max: 20A
  • Switched Voltage Max: 400V
