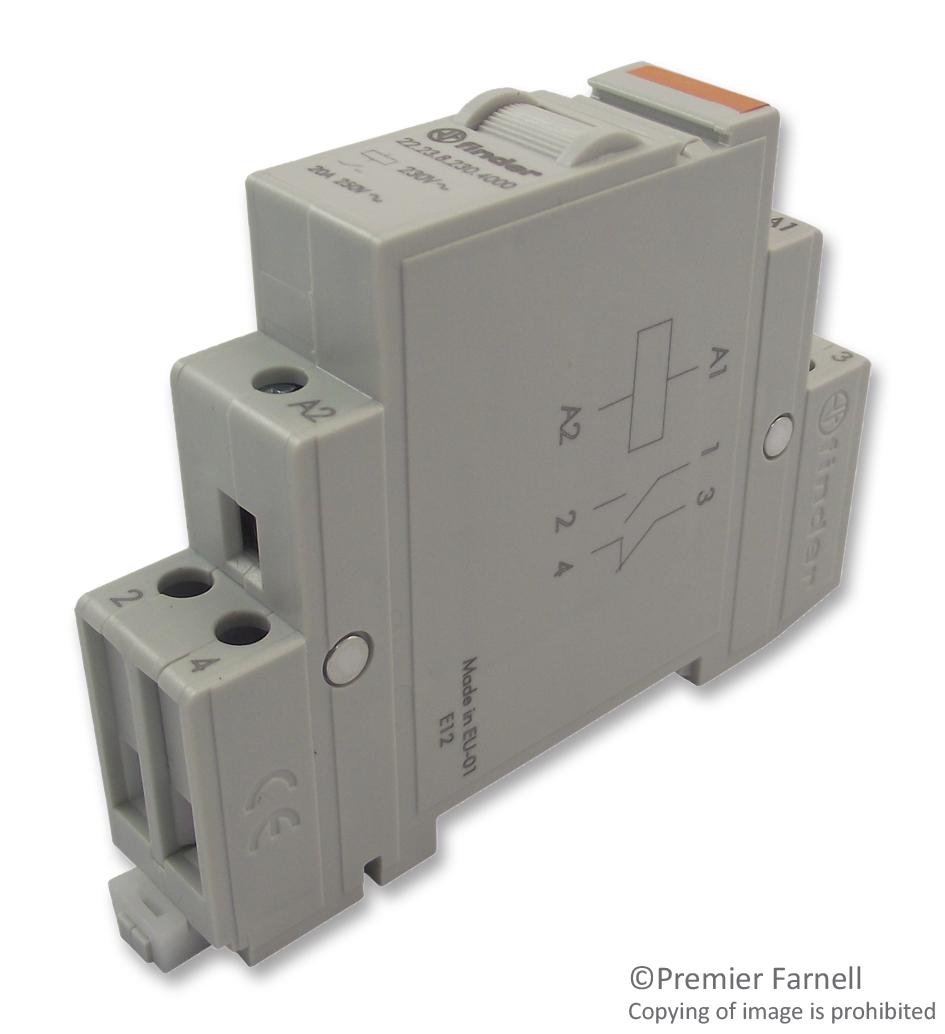

FINDER - 22.23.8.230.4000 - Power Relay, Non Latching, SPST-NO, SPST-NC, 230 VAC, 20 A, 22 Series, DIN Rail
- Contact Configuration: SPST-NO, SPST-NC
- Coil Voltage: 230VAC
- Contact Current: 20A
- Product Range: 22 Series
- Relay Mounting: DIN Rail
- Coil Type: -
- Contact Voltage VAC: 250VAC
- Relay Terminals: Screw
- Contact Voltage VDC: -
- Contact Material: Silver Tin Oxide
- Coil Resistance: 4.2kohm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: GOST
- Approval Category: IP20
- Approvals & Standards: CE
- Coil Current: 12.5mA
- Coil Operating Lower Percent Limit: 85%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VAC Nom: 230V
- Contact Current AC Max: 30A
- Contact Current Max: 20A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Current Rating: 20A
- Dielectric Strength VDC: 3.5kV
- External Depth: 84mm
- External Height: 58.4mm
- External Length / Height: 58.4mm
- External Width: 17.4mm
- Nom Operating Power: 3VA
- Operating Temperature Max: 40°C
- Operating Temperature Min: -40°C
- Relay Type: Power
- Switched Current Max: 20A
- Switched Voltage Max: 400V
