2213S-10g Connector, Header, THT, 2.54mm, 10WAY multicomp Pro

MULTICOMP PROUGS :2213S-10G Code de commande:1593442

Prix:
Prix ​​promotionnel€0,21

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (44886 unité)

Documents et téléchargements

description

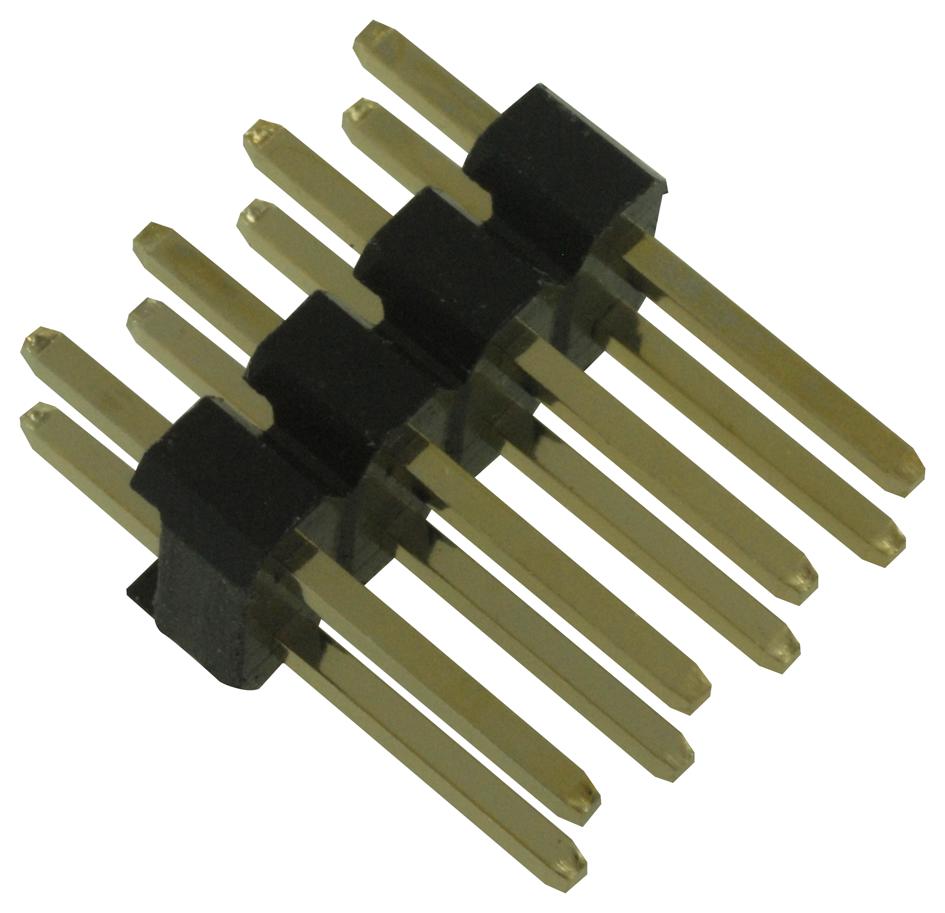

MULTICOMP PRO - 2213S-10G - Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Through Hole, 2213S

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 10Contacts
  • Gender: Header
  • Product Range: 2213S Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Current Rating: 3A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Termination Method: Solder
  • Voltage Rating VAC: 250V
  • Withstand Voltage: 600V
