22-27-2051 Connector, Header, 5Pos, 1ROW, 2.54mm Molex

MOLEXUGS :22-27-2051 Code de commande:9731679

Prix:
Prix ​​promotionnel€1,14

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (21145 unité)

description

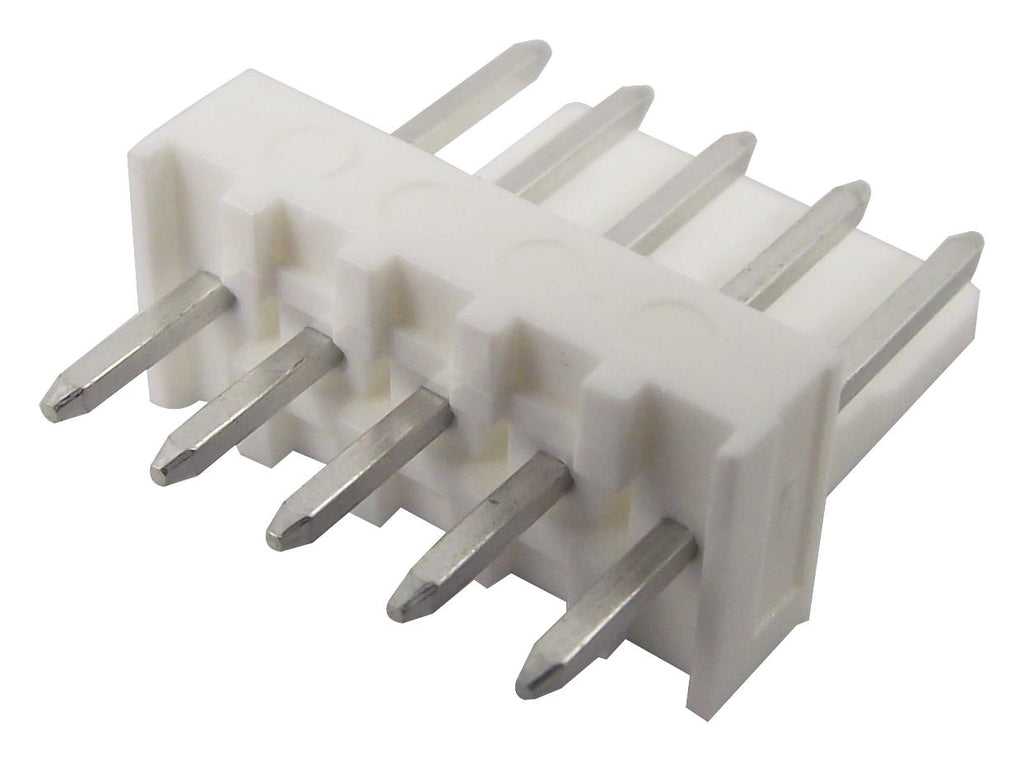

MOLEX - 22-27-2051 - Pin Header, Square Pin, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 5 Contacts, Through Hole Straight

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 5Contacts
  • Gender: Header
  • Product Range: KK 254 6410 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Brass
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL
  • Colour: White
  • Contact Resistance: 20mohm
  • Current Rating: 4A
  • De-mating Force: 0.57N
  • Dielectric Strength: 1500V/m
  • Flammability Rating: UL94V-0
  • Material: Nylon
  • Mating Force: 2N
  • Operating Temperature Max: +75°C
  • Operating Temperature Min: 0°C
  • PCB Hole Diameter: 1.02mm
  • Voltage Rating VAC: 250V
  • Working Voltage: 250V
