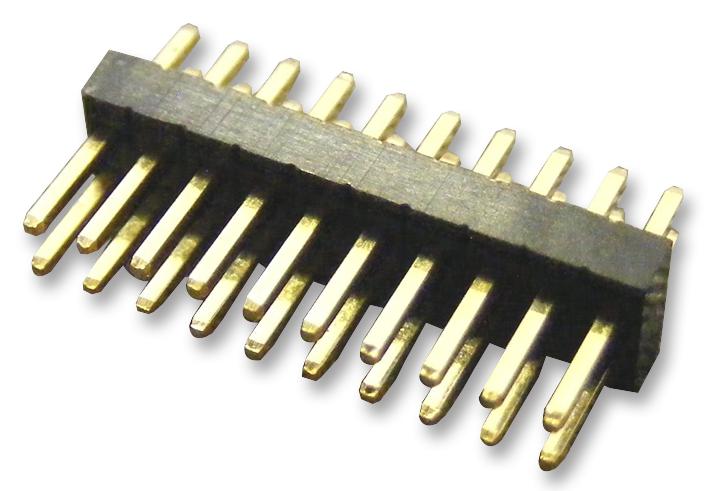

MULTICOMP PRO - 2199SB-50G-301523 - Pin Header, Board-to-Board, 1.27 mm, 2 Rows, 50 Contacts, Through Hole Straight, 2199SB
- Pitch Spacing: 1.27mm
- No. of Contacts: 50Contacts
- Gender: Header
- Product Range: 2199SB Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper Alloy
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 20mohm
- Contact Termination: Solder
- Current Rating: 1A
- Insulation Resistance: 1000Mohm
- Lead Spacing: 1.27mm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -25°C
- Row Pitch: 1.27mm
- Termination Method: Solder
- Voltage Rating VAC: 50V
- Withstand Voltage: 500V
