2199R5-10g-301523 Header, 2 Row, R/Angle, 10WAY multicomp Pro

MULTICOMP PROUGS :2199R5-10G-301523 Code de commande:1577747

Prix:
Prix ​​promotionnel€0,96

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2000 unité)

Documents et téléchargements

description

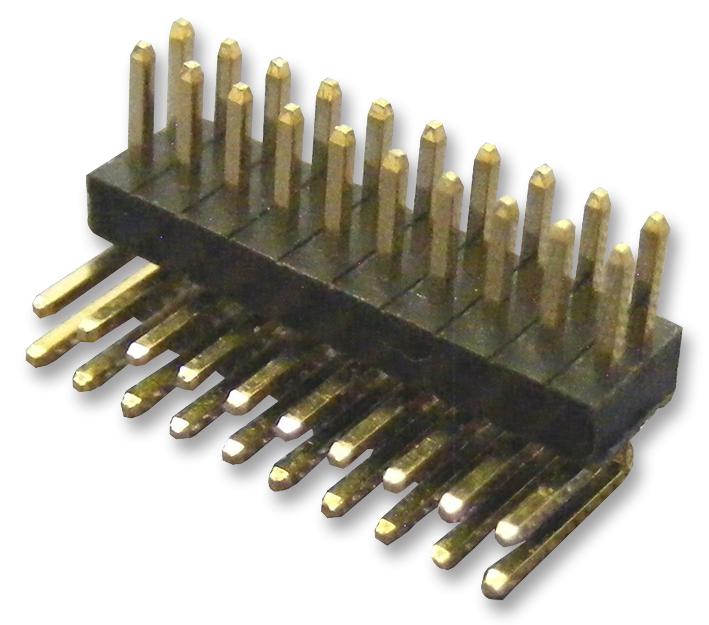

MULTICOMP PRO - 2199R5-10G-301523 - Pin Header, Right Angle, Board-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Through Hole Right Angle

  • Pitch Spacing: 1.27mm
  • No. of Contacts: 10Contacts
  • Gender: Header
  • Product Range: 2199R5 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Current Rating: 1A
  • Insulation Resistance: 1000Mohm
  • Lead Spacing: 1.27mm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -25°C
  • Row Pitch: 1.27mm
  • Termination Method: Solder
  • Voltage Rating VAC: 50V
  • Withstand Voltage: 500V
