216550-1 Jack, Vertical, 8/8 Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :216550-1 Code de commande:1284342

Prix:
Prix ​​promotionnel€3,53

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (412 unité)

Documents et téléchargements

description

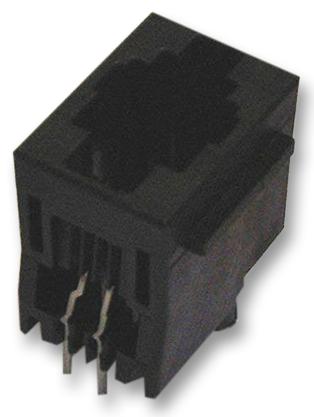

AMP - TE CONNECTIVITY - 216550-1 - Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole Mount

  • Modular Connector Type: RJ45 Jack
  • Port Configuration: 1 x 1 Port
  • No. of Positions / Loaded Contacts (per Port): 8P8C
  • LAN Category: Cat3
  • IP Rating: -
  • Connector Mounting: Through Hole Mount
  • Connector Orientation: Vertical
  • Shielding: Unshielded
  • Magnetics: Without Magnetics
  • LEDs: Without LED
  • Light Pipes: Without Light Pipe
  • Product Range: CGS TE TE-MA Series
  • SVHC: No SVHC (27-Jun-2018)
  • Body Plating: Tin
  • Colour: Black
  • Connector Type: RJ45
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Contact Termination: Through Hole Vertical
  • Contact Termination Type: Through Hole
  • Current Rating: 1.5A
  • External Depth: 12.7mm
  • External Length / Height: 16.4mm
  • External Width: 16mm
  • Flammability Rating: UL94V-HB
  • Gender: Jack
  • Material: Polyester
  • No. of Contacts: 8Contacts
  • No. of Mating Cycles: 750
  • No. of Ports: 1Ports
  • No. of Positions: 8Ways
  • Voltage Rating VAC: 150V
