202A142-15-Cs-0 Heatshrink Boot, 31mm Raychem - Te Connectivity

RAYCHEM - TE CONNECTIVITYUGS :202A142-15-CS-0 Code de commande:769289

Prix:
Prix ​​promotionnel€17,12

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (426 unité)

Documents et téléchargements

description

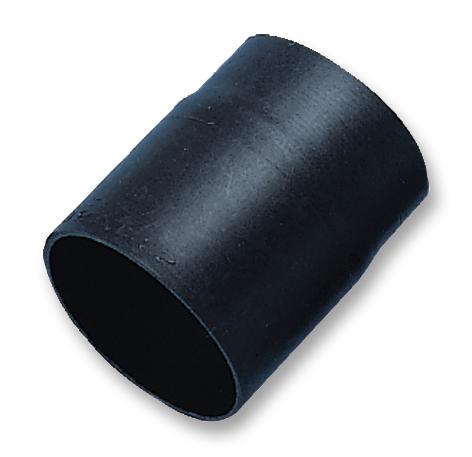

RAYCHEM - TE CONNECTIVITY - 202A142-15-CS-0 - Heat Shrink Boot, Moulded, Straight, 1.22 ", 31 mm, Black

  • Boot Configuration: Straight
  • I.D. Supplied - Imperial: 1.22"
  • I.D. Supplied - Metric: 31mm
  • Shrink Tubing / Boot Colour: Black
  • Total Length - Imperial: -
  • Total Length - Metric: -
  • I.D. Recovered Max - Imperial: 0.291"
  • I.D. Recovered Max - Metric: 7.4mm
  • Shrink Tubing / Boot Material: PO (Polyolefin)
  • Shrink Ratio: 1.7
  • Product Range: -
  • Accessory Type: Heat Shrink Boot
  • Body Material: PO (Polyolefin)
  • Cable Diameter Max: 31mm
  • Cable Diameter Min: 7.4mm
  • Colour: Black
  • Fully Shrunk Diameter: 17.8mm
  • I.D. Max Recovered: 7.4mm
  • I.D. Supplied: 31mm
  • Internal Diameter: 31mm
  • Material: Polyolefin
  • Operating Temperature Max: 135°C
  • Operating Temperature Min: -55°C
  • Shrink Boot Type: Straight
  • Shrink Temperature: 150°C
  • Unshrunk Diameter: 31mm
  • Wall Thickness Recovered: 1.78mm
