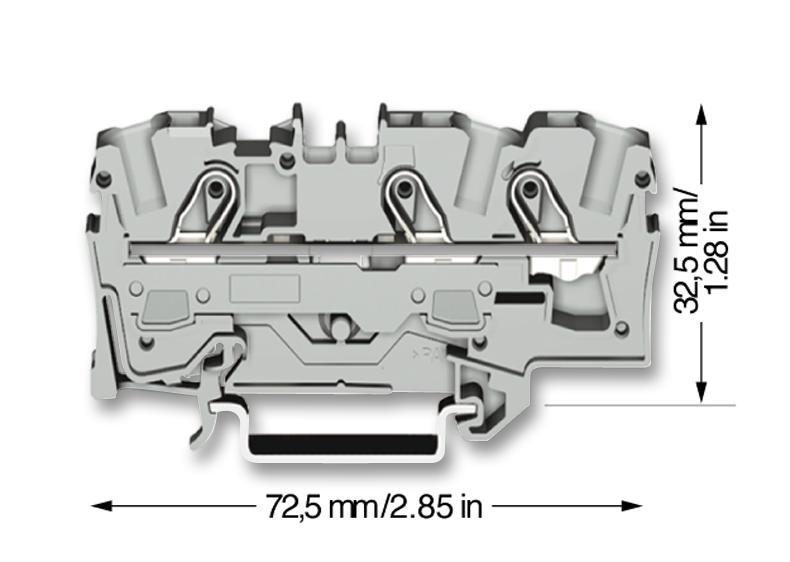

WAGO - 2006-1301 - DIN Rail Mount Terminal Block, 3 Ways, 20 AWG, 8 AWG, 10 mm², Clamp, 41 A
- No. of Positions: 3Ways
- Wire Size AWG Min: 20AWG
- Wire Size AWG Max: 8AWG
- Conductor Area CSA: 10mm²
- Wire Connection Method: Clamp
- Rated Current: 41A
- Rated Voltage: 800V
- No. of Levels: 2
- Product Range: 2006 Series
- SVHC: No SVHC (15-Jan-2018)
- Approvals / Standards: EN 60079, EN 60241
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- External Width: 7.5mm
- Pitch Spacing: 7.5mm
- Voltage Rating VAC: 800V
- Wire Area Size Max: 6mm²
- Wire Area Size Min: 0.5mm²
