1PS302,115 Diode, 80V, 0.17A, HI-Speed SC70 NEXPERIA

NEXPERIAUGS :1PS302,115 Code de commande:1757795

Prix:
Prix ​​promotionnel€0,30

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1995 unité)

Documents et téléchargements

description

NEXPERIA - 1PS302,115 - Small Signal Diode, Dual Series, 85 V, 200 mA, 1.2 V, 4 ns, 4 A

  • Diode Configuration: Dual Series
  • Repetitive Reverse Voltage Vrrm Max: 85V
  • Forward Current If(AV): 200mA
  • Forward Voltage VF Max: 1.2V
  • Reverse Recovery Time trr Max: 4ns
  • Forward Surge Current Ifsm Max: 4A
  • Operating Temperature Max: 150°C

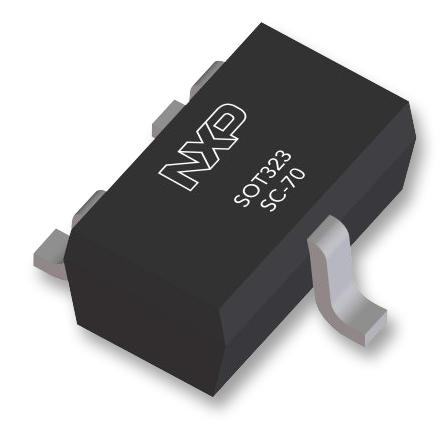

  • Diode Case Style: SOT-323
  • No. of Pins: 3Pins
  • Product Range: 1PS3 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Current Ifsm: 4A
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Reverse Recovery Time trr Typ: 4ns
  • Termination Type: Surface Mount Device
