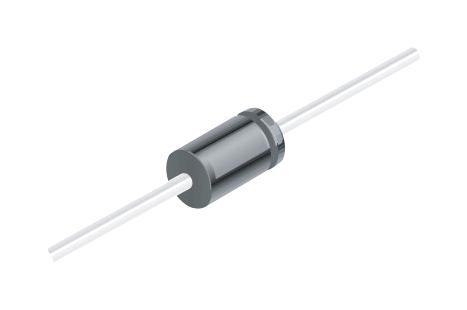

1N914 Diode, Small Signal,100V, DO-35 ONSEMI

ONSEMIUGS :1N914 Code de commande:9843817

Prix:
Prix ​​promotionnel€0,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (36327 unité)

Documents et téléchargements

description

ONSEMI - 1N914 - Small Signal Diode, Single, 100 V, 200 mA, 1 V, 4 ns, 4 A

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 75V
  • Forward Current If(AV): 200mA
  • Forward Voltage VF Max: 1V
  • Reverse Recovery Time trr Max: 4ns
  • Forward Surge Current Ifsm Max: 4A
  • Operating Temperature Max: 175°C
  • Diode Case Style: DO-204AH
  • No. of Pins: 2Pins
  • Product Range: 1N914 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (27-Jun-2018)
  • Alternate Case Style: SOD-27
  • Application Code: High Frequency Switching
  • Current If @ Vf: 10mA
  • Current Ifsm: 1A
  • Device Marking: 1N914
  • Forward Current If Max: 10mA
  • Forward Voltage: 1V
  • Junction Temperature Tj Max: 175°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Peak Forward Current: 300mA
  • Power Dissipation Ptot Max: 500mW
  • Reverse Recovery Time trr Typ: 4ns
