1MS4T2B4M6RE Switch, Pcb, SPDT, HORIZ multicomp Pro

MULTICOMP PROUGS :1MS4T2B4M6RE Code de commande:9473262

Prix:
Prix ​​promotionnel€4,71

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (307 unité)

Documenten en downloads

description

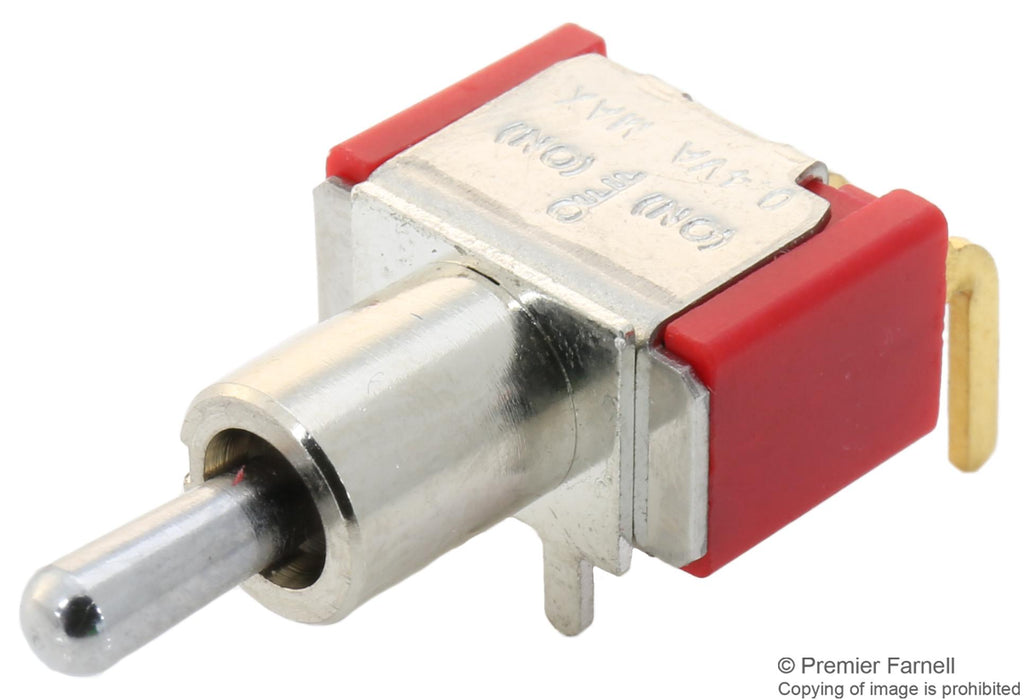

MULTICOMP PRO - 1MS4T2B4M6RE - Toggle Switch, (On)-Off-(On), SPDT, Non Illuminated, 1M, Through Hole, 100 mA

  • Switch Operation: (On)-Off-(On)
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: 1M Series
  • Contact Current Max: 100mA
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Bat
  • Bush Diameter: 6.22mm
  • Bush Thread Length: 7.1mm
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 20V
  • Contact Voltage DC Max: 20V
  • External Depth: 12.7mm
  • External Length / Height: 6.86mm
  • External Width: 12.7mm
  • Height: 6.86mm
  • Lever Length: 6.46mm
  • No. of Electrical Operations: 30000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Power Max: 0.4VA
  • Tab Blade Thickness: 1.27mm
