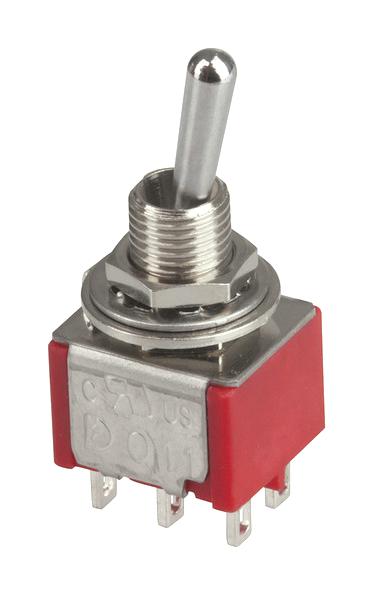

1MD6T1B5M1QE Switch, Solder Tag, DPDT, On-On-On multicomp Pro

MULTICOMP PROUGS :1MD6T1B5M1QE Code de commande:1550185

Prix:
Prix ​​promotionnel€4,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3493 unité)

Documents et téléchargements

description

MULTICOMP PRO - 1MD6T1B5M1QE - Toggle Switch, On-On-On, DPDT, Non Illuminated, 1M, Panel Mount, 5 A

  • Switch Operation: On-On-On
  • Contact Configuration: DPDT
  • Illumination: Non Illuminated
  • Product Range: 1M Series
  • Contact Current Max: 5A
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 120V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 28V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Bat
  • Approval Category: UL Recognised
  • Bush Thread Length: 8.89mm
  • Contact Current AC: 2A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Resistance: 10mohm
  • Contact Resistance Max: 100mohm
  • Contact Voltage AC Max: 250VAC
  • Contact Voltage DC Max: 28VDC
  • External Depth: 11.43mm
  • External Length / Height: 8.89mm
  • External Width: 12.7mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Lever Length: 10.41mm
  • Material: DAP
  • No. of Mechanical Operations: 40000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Current AC Max: 5A
  • Switching Current DC Max: 5A
  • Tab Blade Thickness: 0.76mm
  • Termination Method: Solder
  • Thread Size: ¼ - 40 UNS-2A
