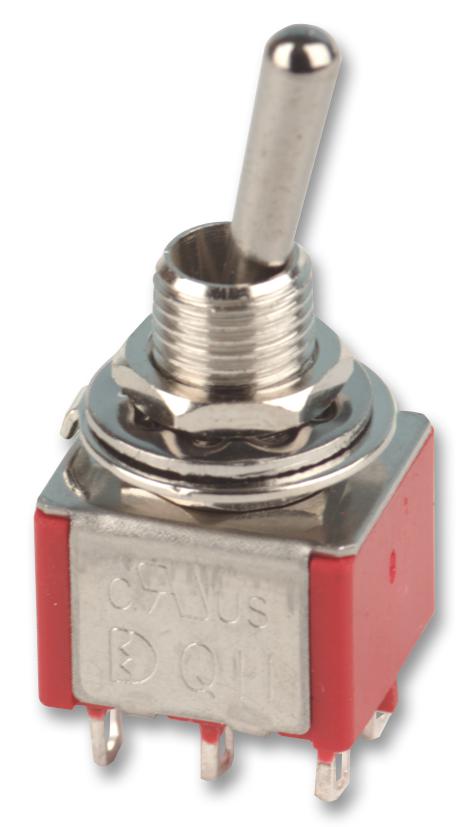

MULTICOMP PRO - 1MD4T1B1M1QE - Toggle Switch, (On)-Off-(On), DPDT, Non Illuminated, 1M, Panel Mount, 5 A
- Switch Operation: (On)-Off-(On)
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: 1M Series
- Contact Current Max: 5A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 250V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 28V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Bat
- Bush Thread Length: 8.89mm
- Contact Current @ Contact Voltage AC Max: 2A
- Contact Current @ Contact Voltage DC Max: 5A
- Contact Current AC Max: 2A
- Contact Current DC Max: 5A
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 125V
- External Depth: 10.54mm
- External Length / Height: 12.7mm
- External Width: 11.43cm
- Flammability Rating: UL94V-0
- Height: 12.7mm
- Lever Length: 10.41mm
- No. of Electrical Operations: 40000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 6.35mm
- Switching Power Max: 0.4VA
- Tab Blade Thickness: 0.76mm
- Thread Size: 1/4" x 40 NS
