19051257 LED Indicator, 12V, Blue CML Innovative Technologies

CML INNOVATIVE TECHNOLOGIESUGS :19051257 Code de commande:1105302

Prix:
Prix ​​promotionnel€9,56

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (106 unité)

Documents et téléchargements

description

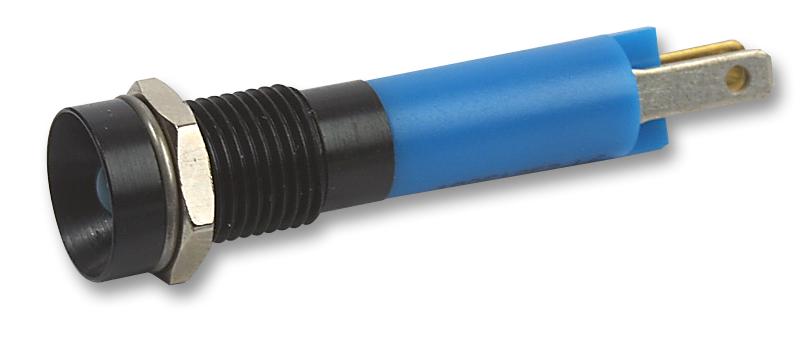

CML INNOVATIVE TECHNOLOGIES - 19051257 - LED Panel Mount Indicator, Black Chrome Bezel, Blue, 12 VDC, 8 mm, 20 mA, 60 mcd, IP67

  • LED Colour: Blue
  • Operating Voltage: 12VDC
  • Mounting Hole Dia: 8mm
  • Forward Current If: 20mA
  • Luminous Intensity: 60mcd
  • IP / NEMA Rating: IP67
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CE
  • Bezel Diameter: 7mm
  • Body Plating: Black Chrome
  • Bulb Size: 5mm
  • External Diameter: 9.5mm
  • Fixing Hole Diameter: 8mm
  • Forward Current If Max: 20mA
  • Forward Voltage: 12V
  • Forward Voltage VF Max: 12V
  • LED / Lamp Size: 5mm
  • Length Behind Bezel: 36mm
  • Luminous Intensity Typ: 12mcd
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +70°C
  • Operating Voltage Tolerance +: 10%
  • Operating Voltage Tolerance -: 10%
  • PIV Max: 5V
  • Peak Forward Current: 30mA
  • Peak Wavelength: 475nm
  • Thread Pitch: 0.75mm
  • Thread Size: M8
  • Voltage Rating V DC: 12V
  • Voltage Vf Typ: 12VDC
  • Wavelength Typ: 475nm
