1812L110/16DR Fuse, Resettable, 1812, 16V, 1.1A LITTELFUSE

LITTELFUSEUGS :1812L110/16DR Code de commande:1597004

Prix:
Prix ​​promotionnel€0,93

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (8454 unité)

Documents et téléchargements

description

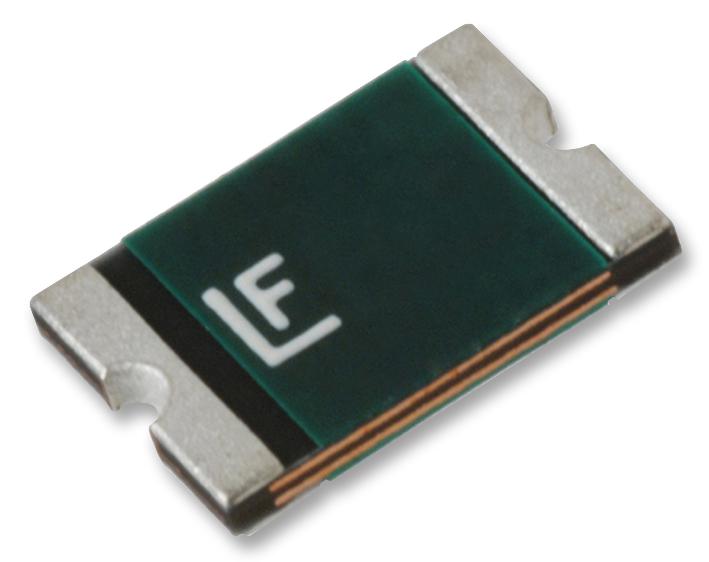

LITTELFUSE - 1812L110/16DR - Resettable Fuse, PPTC, 1812 (4532 Metric), POLYFUSE 1812L, 16 VDC, 1.1 A, 1.95 A, 0.3 s

  • Thermistor Mounting: SMD
  • Product Range: POLYFUSE 1812L Series
  • Holding Current: 1.1A
  • Tripping Current: 1.95A
  • Voltage Rating: 16VDC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • Approval Bodies: TUV
  • Approval Category: UL Recognised
  • Carrying Current Max: 100A
  • External Depth: 3.41mm
  • External Length / Height: 1.25mm
  • External Width: 4.73mm
  • Holding Current Max Ih: 1.1A
  • Initial Resistance Max: 0.18ohm
  • Initial Resistance Min: 0.06ohm
  • Operating Voltage: 16V
  • PTC Fuse Case Style: 1812 [4532 Metric]
  • Power Dissipation Pd: 0.8W
  • Resistance: 0.12ohm
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC
