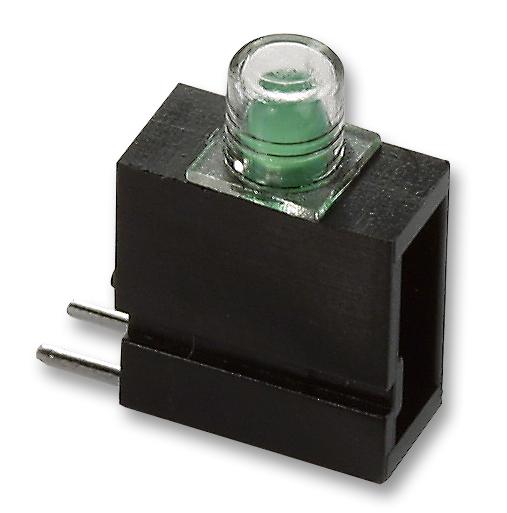

MENTOR - 1808.8035 - Circuit Board Indicator, Green, 1 LEDs, Through Hole, T-1 (3mm), 20 mA, 20 mcd
- LED Colour: Green
- No. of LEDs: 1LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current If: 20mA
- Luminous Intensity: 20mcd
- Forward Voltage: 2.2V
- Viewing Angle: 60°
- Height: 10mm
- Width: 4.95mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 10.16mm
- External Length / Height: 13.8mm
- External Width: 5.08mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.2V
- LED / Lamp Size: 3mm / T-1
- LED Type: Standard
- Lead Spacing: 2.54mm
- Lens Shape: Round
- Luminous Intensity Typ: 8mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Peak Forward Current: 30mA
- Peak Wavelength: 565nm
- Voltage Vf Typ: 2.2V
- Wavelength Typ: 565nm
