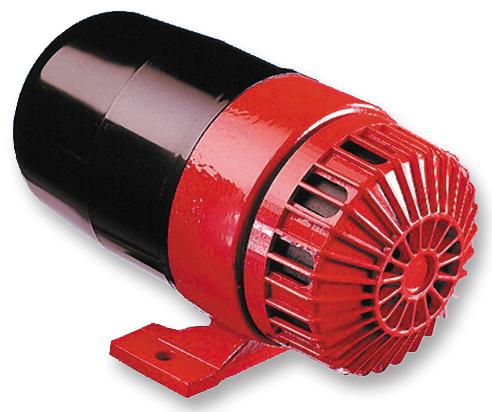

KLAXON - 18-980205 - Sounder, Single, 120dB, 230VAC, 460mA, IP65, 95mm Ext. Depth
- Supply Voltage V AC: 230VAC
- Supply Voltage V DC: -
- Tones: Single
- Sound Level SPL: 120dB
- IP / NEMA Rating: IP65
- Product Range: -
- Resonant Frequency: -
- Current Consumption: 460mA
- External Depth: 95mm
- Operating Temperature Min: -30°C
- Operating Temperature Max: 45°C
- External Diameter: 95mm
- External Height: 180mm
- External Length / Height: 180mm
- Frequency: 1800Hz
- Frequency Response Min: 1.8kHz
- Input Current: 460mA
- Material: Aluminium
- Operating Temperature Range: -30°C to +45°C
- Sound Level Distance: 1m
- Sound Level Max: 120dB
- Supply Voltage: 230V
- Supply Voltage AC Max: 230V
- Supply Voltage Max: 230V
- Supply Voltage Min: 230V
- Supply Volts: 230V AC
- Transducer Function: Siren
- Weight: 1.7kg
