175289-5 Crimp Contact, Tab, 16-20AWG Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :175289-5 Code de commande:3193986

Prix:
Prix ​​promotionnel€0,42

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13261 unité)

Documents et téléchargements

description

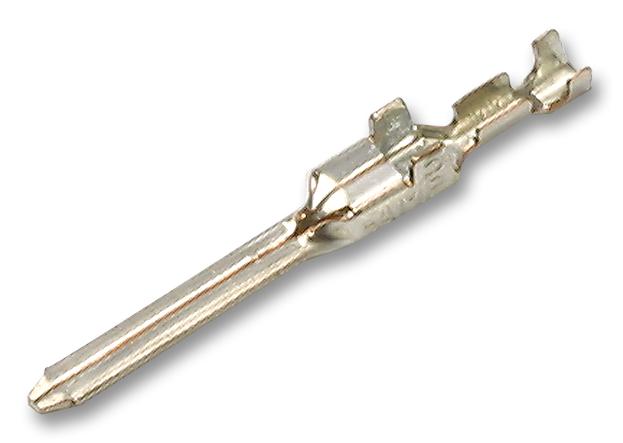

AMP - TE CONNECTIVITY - 175289-5 - Heavy Duty Connector Contact, Dynamic D-3000, Pin, 16 AWG, Crimp, Copper

  • Product Range: Dynamic D-3000 Series
  • Contact Gender: Pin
  • Wire Size AWG Max: 16AWG
  • Contact Termination Type: Crimp
  • Current Rating: -
  • Contact Material: Copper
  • Contact Plating: Tin Plated Contacts
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, TUV, UL
  • Cable Diameter Max: 2.8mm
  • Cable Diameter Min: 1.8mm
  • Contact Termination: Crimp
  • For Use With: D-3 Series Connectors
  • Gender: Plug
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Wire Area Size Max: 2.8mm²
  • Wire Area Size Min: 1.8mm²
  • Wire Size: 16AWG
  • Wire Size AWG Min: 20AWG
