1734346-1 USB, 2.0 Type B, Receptacle, SMT Te Connectivity

TE CONNECTIVITYUGS :1734346-1 Code de commande:1321918

Prix:
Prix ​​promotionnel€3,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6590 unité)

Documents et téléchargements

description

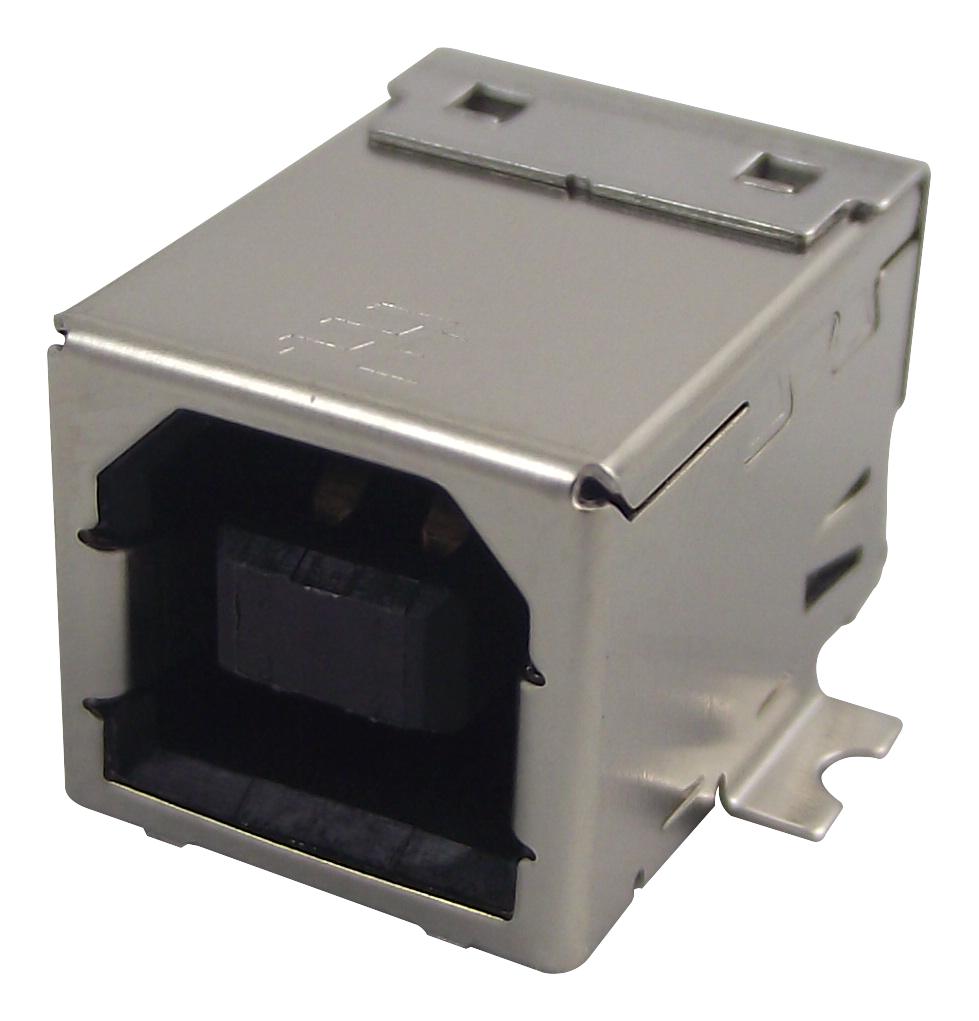

TE CONNECTIVITY - 1734346-1 - USB Connector, USB Type B, USB 2.0, Receptacle, 4 Ways, Surface Mount, Right Angle

  • USB Connector Type: USB Type B
  • USB Standard: USB 2.0
  • Gender: Receptacle
  • No. of Positions: 4Ways
  • Connector Mounting: Surface Mount
  • Orientation: Right Angle
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Body Plating: Nickel
  • Connector Mounting Orientation: PCB
  • Connector Type: USB B
  • Contact Termination: Surface Mount Right Angle
  • Contact Termination Type: Surface Mount
  • Current Rating: 1A
  • External Depth: 16mm
  • External Length / Height: 10.62mm
  • External Width: 12.04mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • No. of Contacts: 4Contacts
  • No. of Mating Cycles: 1500
  • Termination Method: Solder
  • Voltage Rating VAC: 30V
  • Withstand Voltage: 750V
