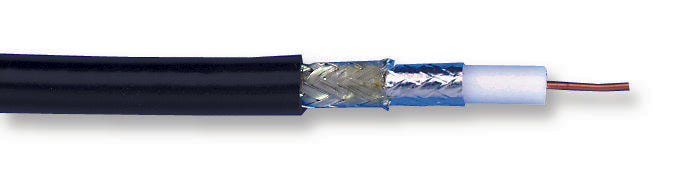

BELDEN - 1694A.00153 - Coaxial Cable, Precision Video Analog/Digital, RG6, 18 AWG, 75 ohm, 498.69 ft, 152 m
- Coaxial Cable Type: RG6
- Wire Gauge: 18AWG
- Conductor Area CSA: -
- Impedance: 75ohm
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152m
- Jacket Colour: Black
- Jacket Material: PVC
- Conductor Material: Copper
- No. of Max Strands x Strand Size: Solid
- External Diameter: 6.99mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 10MHz: 2.4dB
- Attenuation @ 135MHz: 7.4dB
- Attenuation @ 1GHz: 20.5dB
- Attenuation @ 1MHz: 0.79dB
- Attenuation @ 360MHz: 12dB
- Attenuation @ 720MHz: 17.6dB
- Belden Type Number: 1694A
- Capacitance per Metre: 64pF
- Coaxial Type: 1694A
- Conductor Make-up: 1/18AWG
- Outer Diameter: 6.99mm
- Resistance per Metre: 21ohm/km
- Screen Type Primary: Duofoil
- Screen Type, Secondary: Tinned copper braid
- Secondary Insulation Colour: Black
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 82%
- Wire Size: 18AWG
