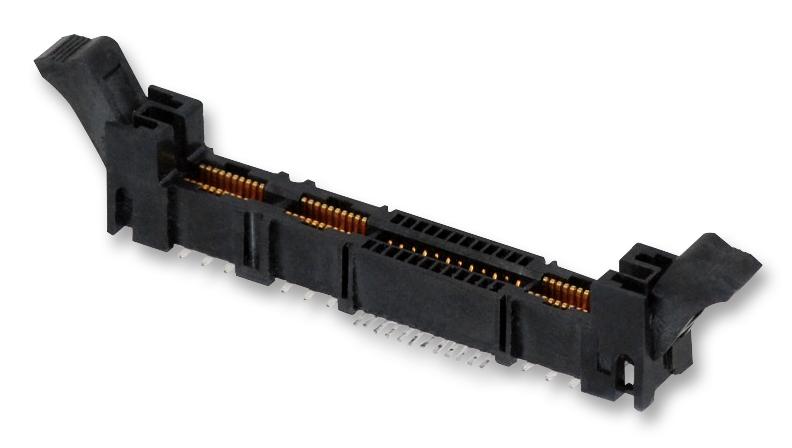

TE CONNECTIVITY - 1651826-1 - Card Edge Connector, Dual Side, 1.57 mm, 12 (Power), 18 (Signal) Contacts, Through Hole Mount
- Card Edge Connector Type: Dual Side
- Card Thickness: 1.57mm
- No. of Contacts: 12 (Power), 18 (Signal) Contacts
- Connector Mounting: Through Hole Mount
- Connector Body Orientation: Straight
- Contact Termination Type: Solder
- Contact Material: Copper Alloy
- Contact Plating - Mating Side: 0.76µm Gold Plated Contacts
- Connector Body Material: PET (Polyester) Body
- Product Range: Mini CROWN EDGE Series
- SVHC: No SVHC (15-Jan-2019)
- Card Edge / Backplane Connector Type: Card Edge
- Connector Type: Card Edge
- Contact Plating: Gold Plated Contacts
- Contact Termination: Through Hole Vertical
- Gender: Receptacle
- No. of Contacts: 30Contacts
- No. of Rows: 2Rows
- Pitch Spacing: 2.5mm
- Row Pitch: 5.08mm
