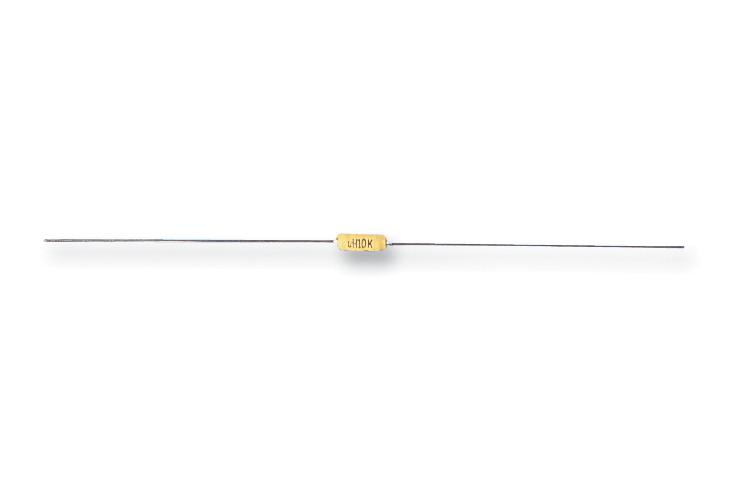

SIGMAINDUCTORS - TE CONNECTIVITY - 1624049-2 - Inductor, Power, Axial Lead, 270 nH, 1.05 A, 0.16 ohm, ± 10%, SC30 Series
- Product Range: SC30 Series
- Inductance: 270nH
- DC Current Rating: 1.05A
- DC Resistance Max: 0.16ohm
- Inductance Tolerance: ± 10%
- SVHC: 2-Ethoxyethanol (27-Jun-2018)
- Body Diameter: 2.7mm
- Colour: Yellow
- Current Rating: 940mA
- External Length / Height: 7mm
- Inductance Measurement Frequency: 25MHz
- Inductor Case Style: Axial Leaded
- Inductor Type: High Frequency / RF
- Lead Diameter: 0.6mm
- Lead Length: 25mm
- No. of Pins: 2Pins
- Q Factor: 33
- Q Test Frequency: 25MHz
- Self Resonant Frequency Min: 430MHz
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 700V
- Voltage Rating VAC: 700V
