Documents et téléchargements
description

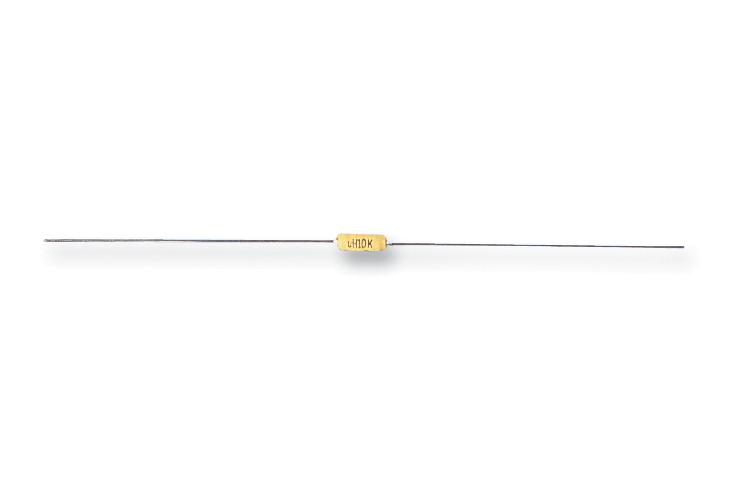

SIGMAINDUCTORS - TE CONNECTIVITY - 1624006-2 - RF Choke, SC30, 150 µH, 108 mA, 15 ohm, ± 10%, 11 MHz
- Product Range: SC30 Series
- Inductance: 150µH
- DC Current Rating: 108mA
- DC Resistance Max: 15ohm
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: 11MHz
- SVHC: 2-Ethoxyethanol (27-Jun-2018)
- Body Diameter: 2.7mm
- Colour: Yellow
- Current Rating: 91mA
- External Length / Height: 7mm
- Inductance Measurement Frequency: 0.79MHz
- Inductor Case Style: Axial Leaded
- Inductor Type: High Frequency / RF
- Lead Diameter: 0.6mm
- Lead Length: 25mm
- No. of Pins: 2Pins
- Q Factor: 30
- Q Test Frequency: 790kHz
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 700V
- Voltage Rating VAC: 700V
