1586315-1 Contact, Socket, 18AWG TO 22AWG, Crimp Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :1586315-1 Code de commande:8116067

Prix:
Prix ​​promotionnel€0,12

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (186927 unité)

Documents et téléchargements

description

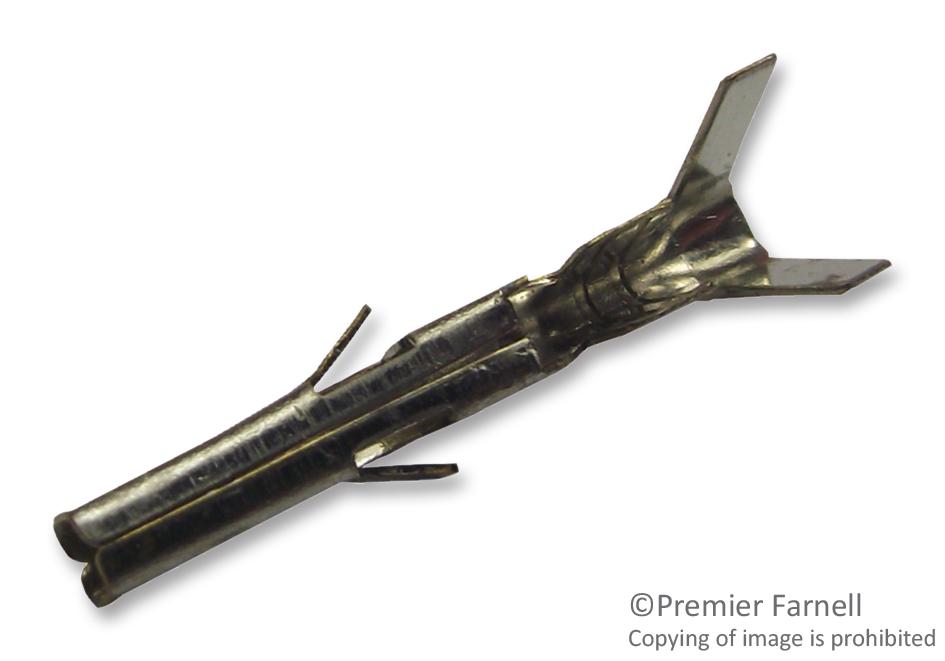

AMP - TE CONNECTIVITY - 1586315-1 - Contact, VAL-U-LOK, Socket, Crimp, 18 AWG, Tin Plated Contacts, VAL-U-LOK Series Connector System

  • Product Range: VAL-U-LOK Series
  • Contact Gender: Socket
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 18AWG
  • Contact Plating: Tin Plated Contacts
  • For Use With: VAL-U-LOK Series Connector System
  • Wire Size AWG Min: 22AWG
  • Contact Material: Brass
  • SVHC: No SVHC (15-Jan-2019)
  • Body Plating: Tin
  • Cable Diameter Max: 1.02mm
  • Cable Diameter Min: 0.64mm
  • Contact Size: 18
  • Contact Termination: Crimp
  • Current Rating: 9A
  • Gender: Receptacle
  • Voltage Rating VAC: 600V
  • Wire Area Size Max: 0.8mm²
  • Wire Area Size Min: 0.3mm²
  • Wire Size: 18AWG
  • Wire Size (AWG): 22AWG to 18AWG
